Mugen XE5 ECU Technical Reference
Technical overview of the Mugen XE5 ECU, a race-oriented variant derived from the PM7-0330 platform designed for ZC engines.
The XE5 is a specialized race-platform ECU developed for the Honda ZC engine. It is derived from the PM7-0330 hardware architecture. This unit is configured for "race-only" applications, featuring a modified program that disables standard sensor monitoring, including the oxygen (O2) sensor.
Important
The XE5 is intended for competition use only. Due to the removal of closed-loop feedback and sensor diagnostics, this ECU is not suitable for street-driven vehicles.
Hardware Overview

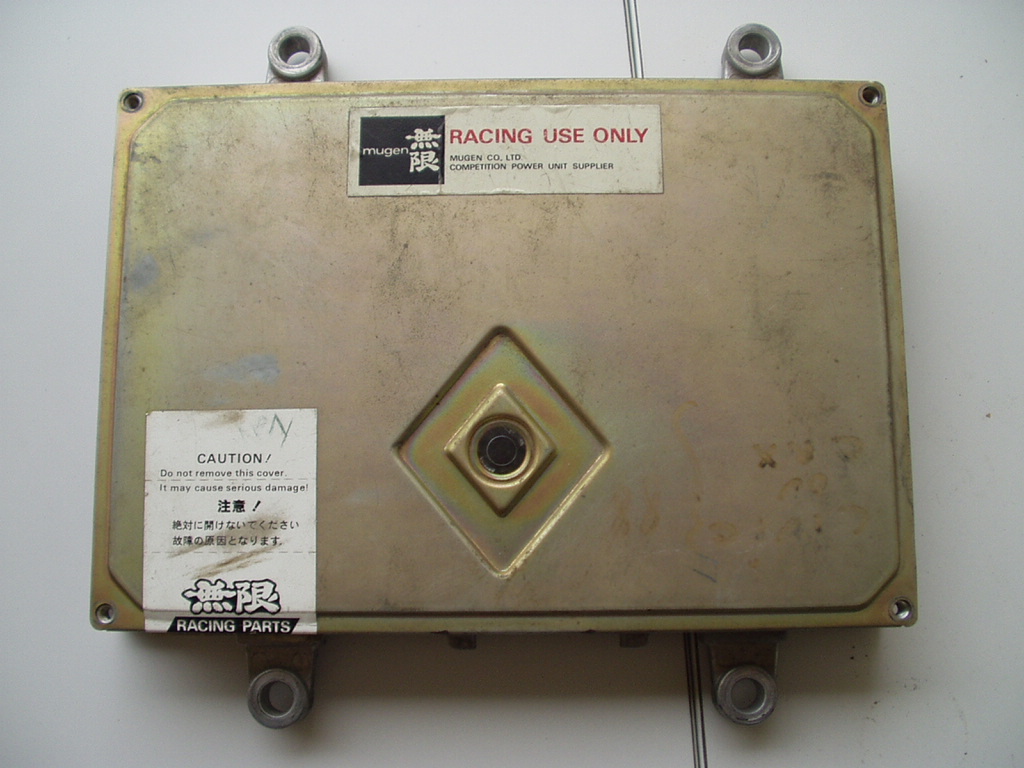

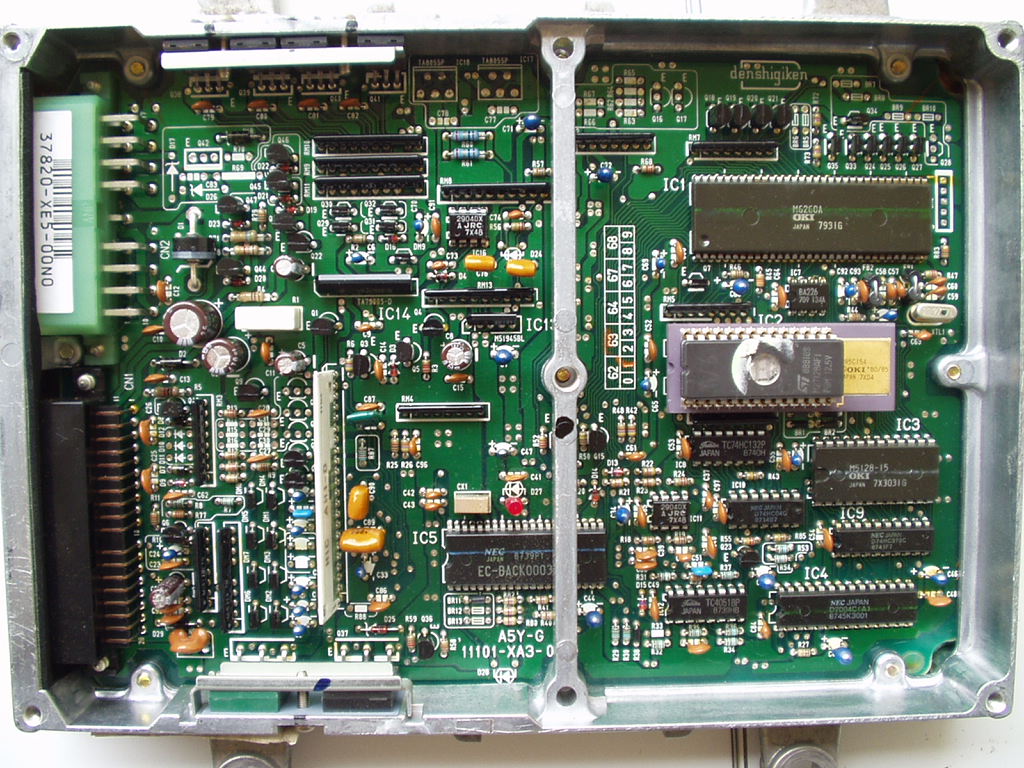

The XE5 utilizes the PM7-0330 PCB layout. It is physically distinguished by its specific Mugen-branded casing and internal programming.
ROM Specifications
The XE5 utilizes a specific binary file optimized for high-performance ZC engine operation.
- Base Hardware: PM7-0330
- Application: ZC Engine (Race)
- ROM File: PM7-MUG.bin0
Diagnostic Notes
- Sensor Checks: Most standard OBD0 sensor checks are disabled in the XE5 firmware.
- O2 Sensor: The O2 sensor input is ignored by the XE5 logic, as the unit is designed to operate in open-loop mode exclusively.
- Compatibility: Ensure the engine harness and sensor configuration match the requirements of the PM7-0330 hardware before installation.
