Corrosion is a common issue affecting the fuel tank and associated components on fourth-generation Honda Prelude models (BA8, BA9, BB1, BB4 chassis). This guide outlines the procedure for safely removing the fuel tank, inspecting its condition, and either repairing it or installing a replacement unit.

‹ 1 / 8 ›

✕ ‹

›

1 / 8

‹ 1 / 8 ›

✕ ‹

›

1 / 8

‹ 1 / 8 ›

✕ ‹

›

1 / 8

‹ 1 / 8 ›

✕ ‹

›

1 / 8

‹ 1 / 8 ›

✕ ‹

›

1 / 8

‹ 1 / 3 ›

✕ ‹

›

1 / 3

1. Safety First#

Working with fuel systems and under a lifted vehicle presents significant hazards. Prioritize safety to prevent injury, fire, or damage.

Warning

Fuel is highly flammable. Ensure adequate ventilation, extinguish all ignition sources (open flames, sparks, hot work), and have a fire extinguisher rated for Class B (flammable liquids) fires readily available. Disconnect the vehicle's battery before starting work.

Caution

When lifting the vehicle, ensure it is securely supported on jack stands or a professional vehicle lift. Never work under a vehicle supported only by a jack. Always follow the lift manufacturer's safety instructions.

2. Tools and Materials#

Before beginning, gather the necessary tools and replacement parts:

• General Hand Tools: Socket set (8mm, 9mm, 6mm, 7mm are commonly used for fuel system components), wrenches, pliers, screwdrivers.
• Safety Gear: Safety glasses, gloves, fire extinguisher.
• Fluid Management: Drain pan, fuel-rated container for old fuel, shop rags.
• Support Equipment: Jack stands or vehicle lift, transmission jack or sturdy support for the fuel tank.
• Replacement Parts (as needed):
  • New or reconditioned fuel tank.
  • Fuel pump assembly (or just the pump if serviceable).
  • Fuel level sender unit.

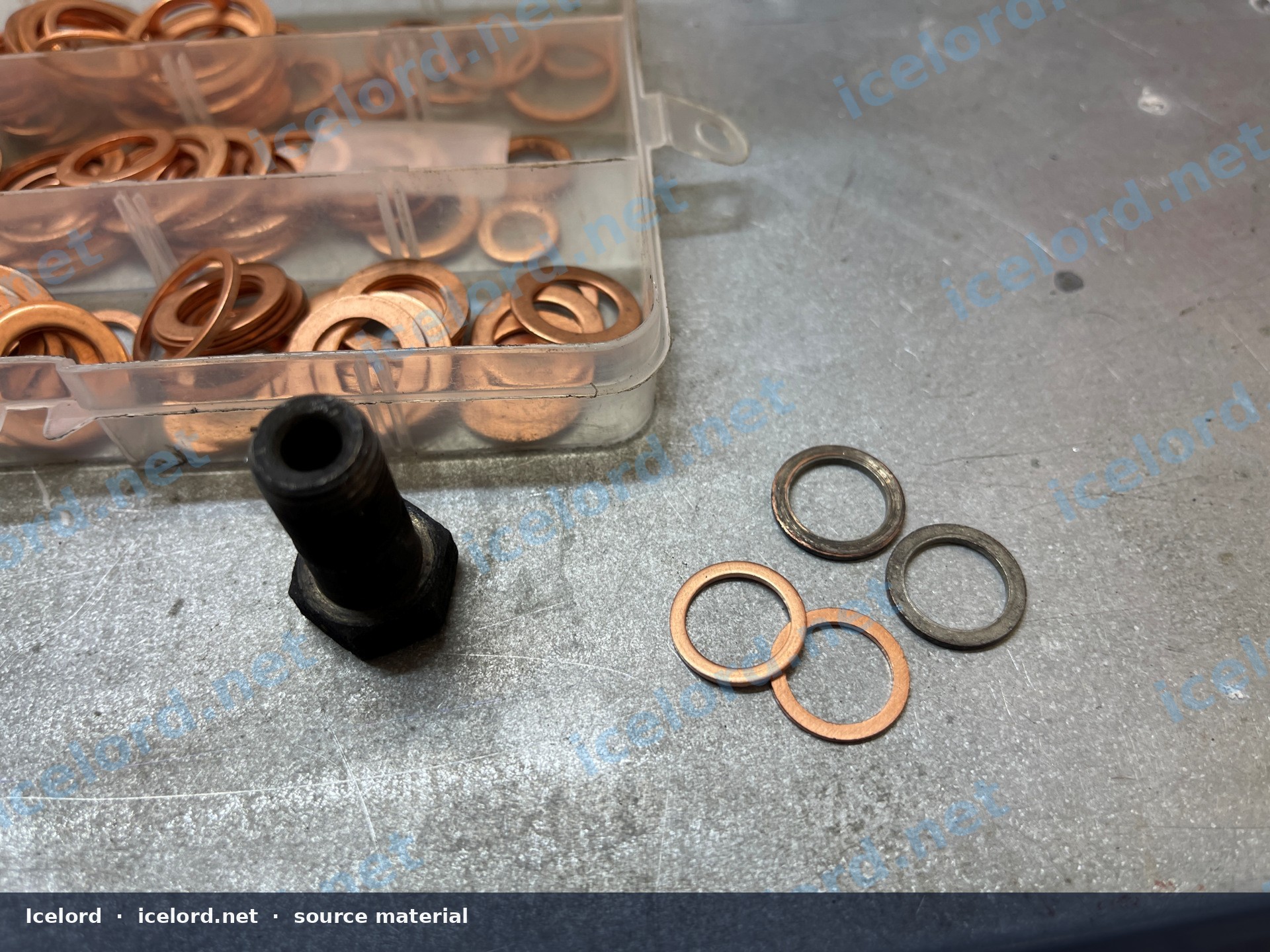

  • New fuel tank gaskets and O-rings (for fuel pump, sender, and any access panels).
  • New fuel lines or fuel-rated hose (SAE J30R9 or equivalent) if existing lines are corroded or damaged.
  • Rust converter (e.g., phosphoric acid), primer, and undercoating if addressing chassis corrosion.
  • New mounting hardware (bolts, nuts) for the fuel tank and straps if existing ones are corroded.

3. Fuel Tank Removal Procedure#

3.1 Depressurize the Fuel System#

Consult the factory service manual (FSM) for the specific procedure to depressurize the fuel system for your Prelude model. This typically involves disabling the fuel pump (e.g., by removing its fuse or relay) and running the engine until it stalls, or by carefully loosening a fuel line connection to relieve pressure.

3.2 Drain the Fuel Tank#

Important

It is crucial to drain as much fuel as possible from the tank before removal. A full fuel tank is extremely heavy and dangerous to handle.

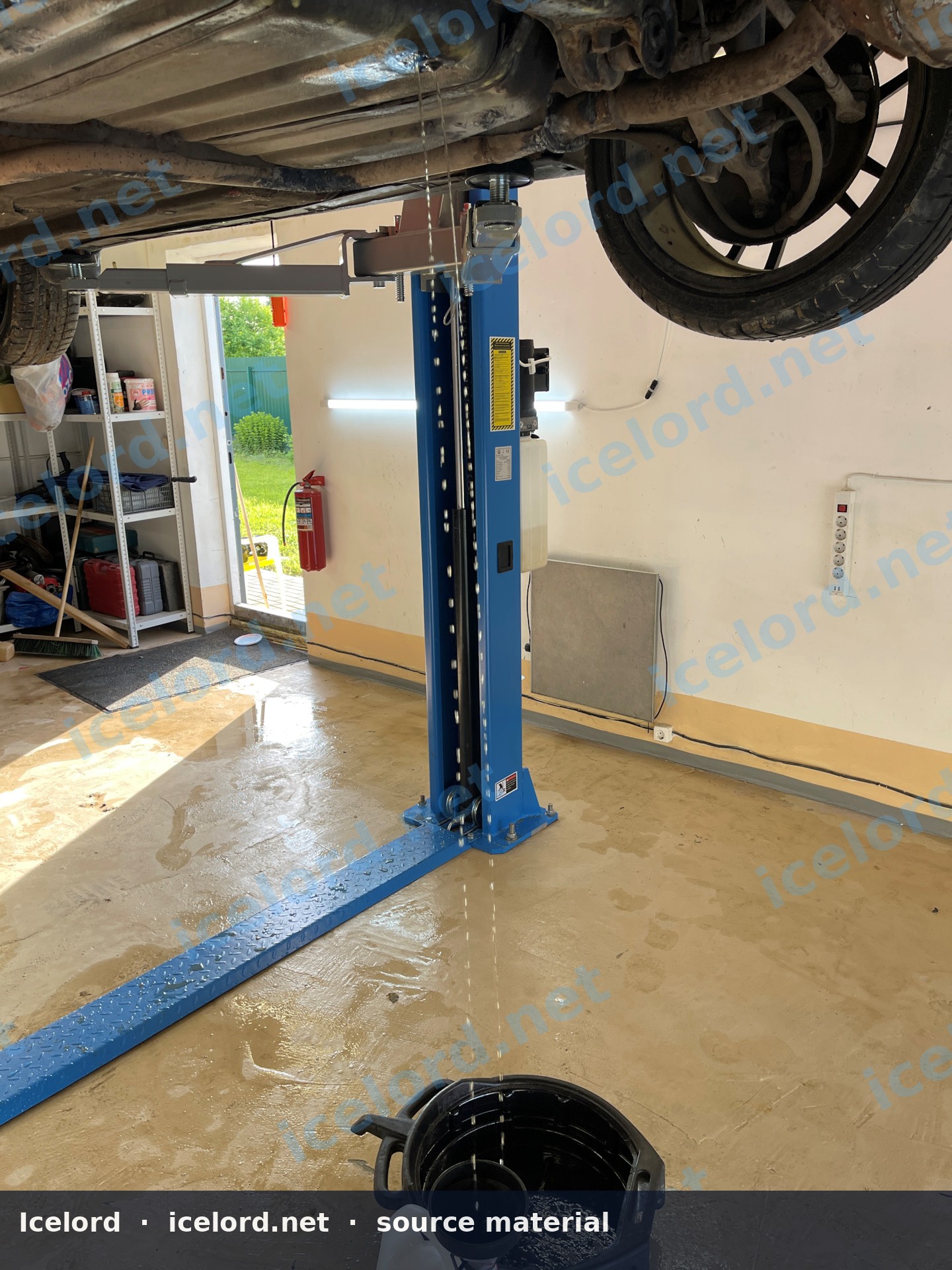

1. Position a suitable, fuel-rated drain pan or container beneath the fuel tank.

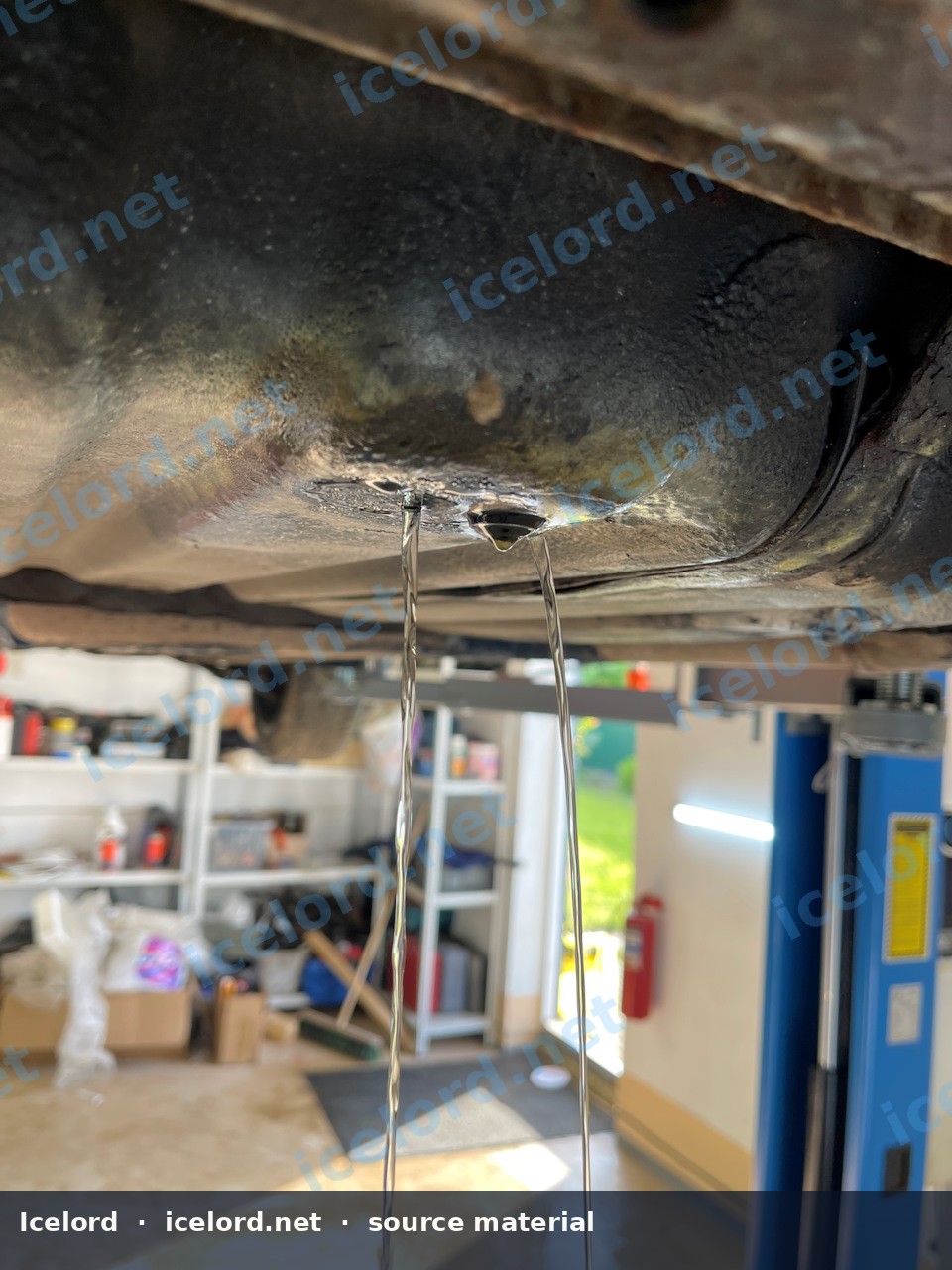

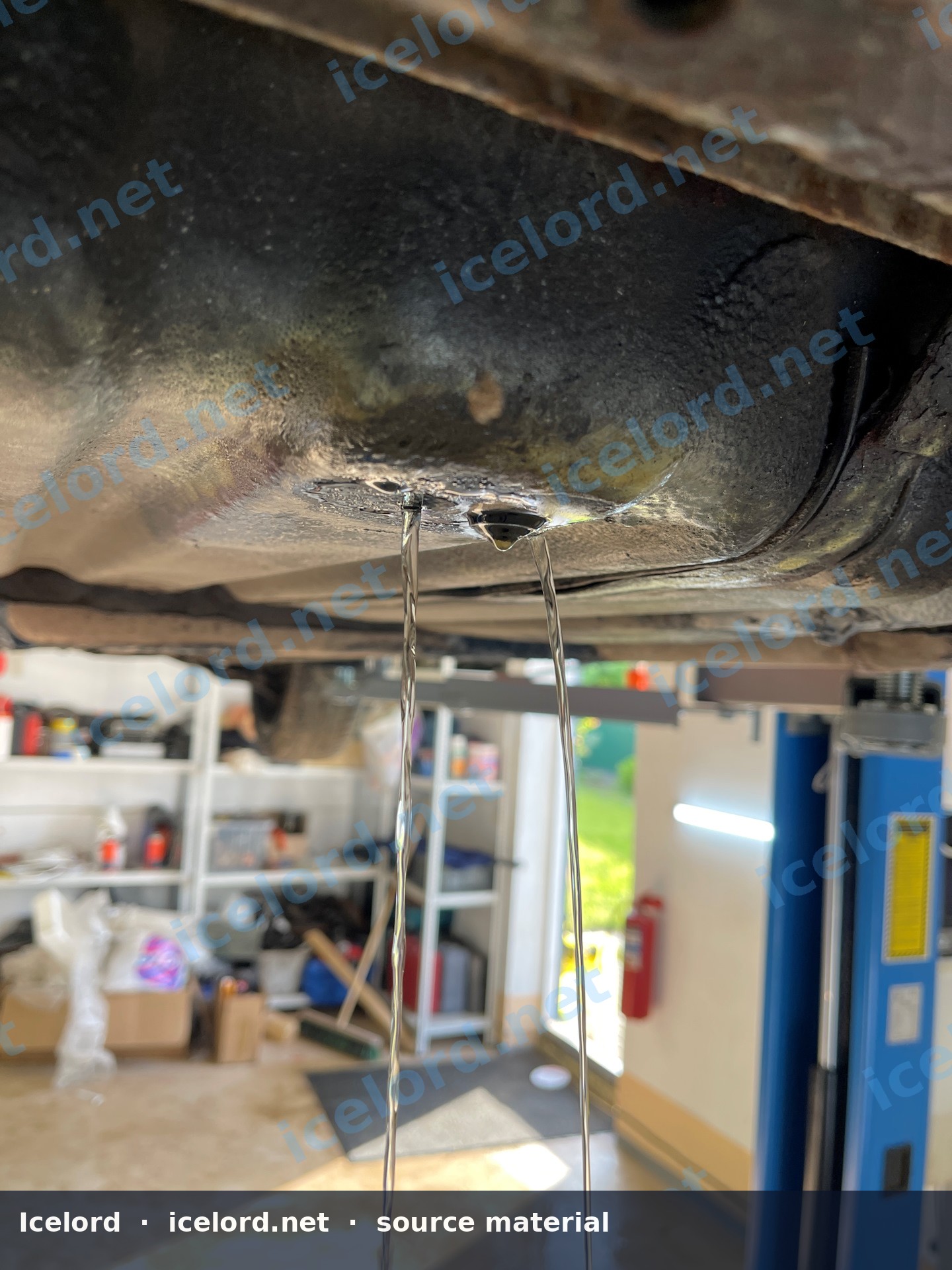

2. Locate the fuel tank drain plug (if equipped) or carefully disconnect a low-point fuel line to allow fuel to drain. Exercise extreme caution to prevent spills.
3. Collect all drained fuel in an approved container for proper disposal or transfer.

3.3 Disconnect Components#

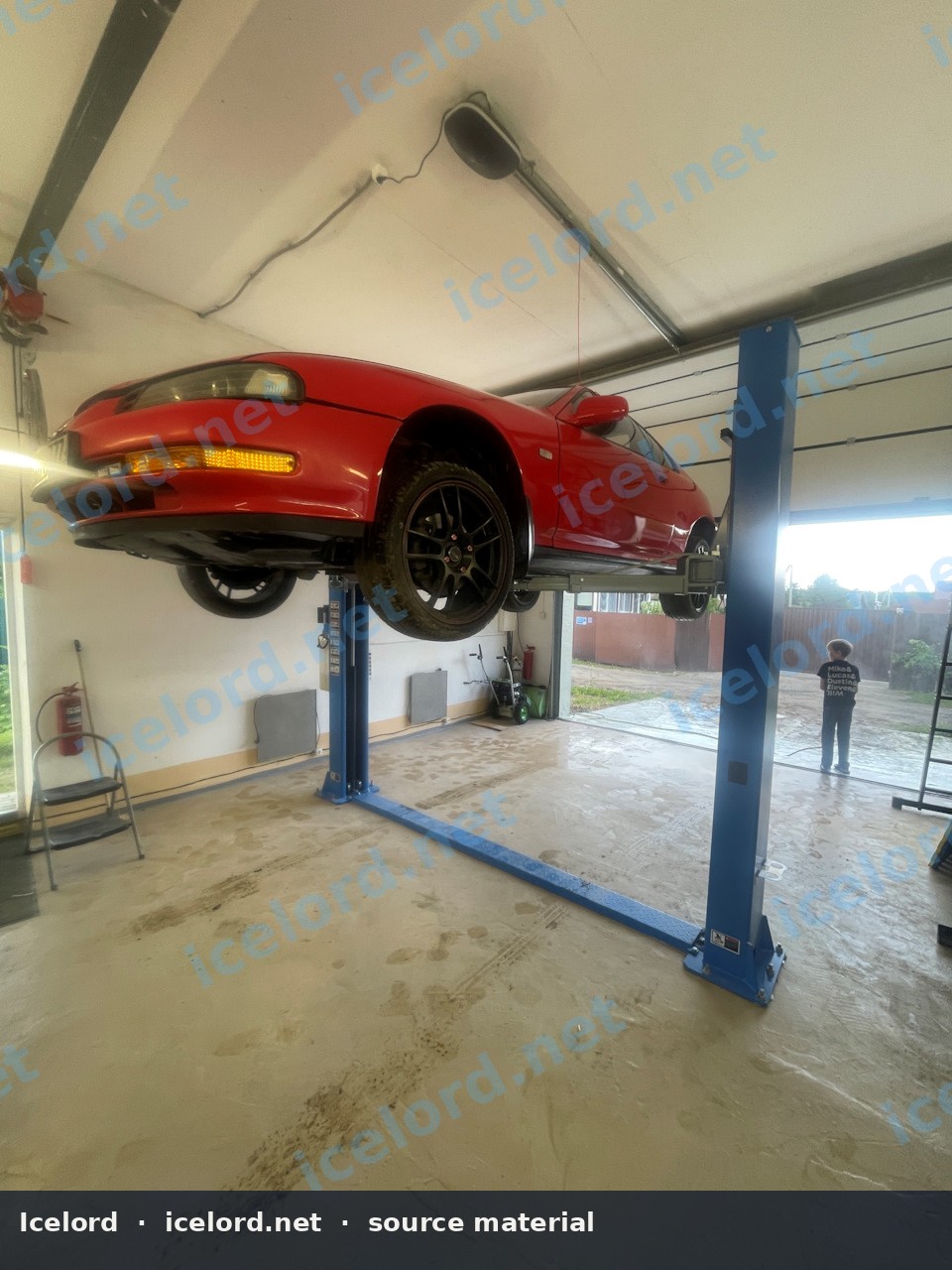

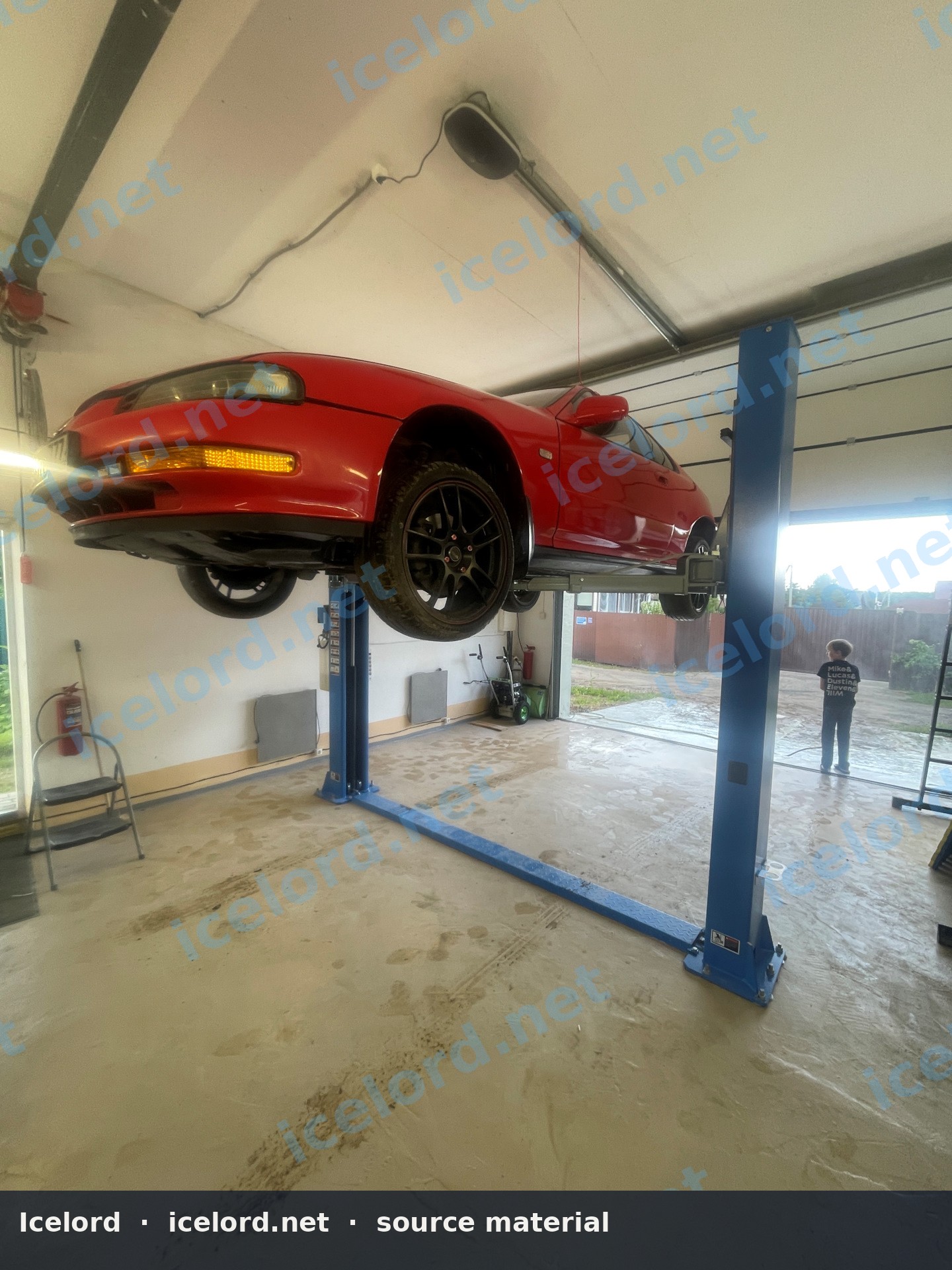

1. Lift the Vehicle: Safely raise the vehicle to a comfortable working height and secure it on jack stands or a lift.
2. Disconnect Electrical Connectors: Locate and disconnect the electrical connectors for the fuel pump and fuel level sender unit. These are typically accessed from the top of the tank or through an access panel in the trunk.
3. Disconnect Fuel Lines: Carefully disconnect the fuel supply, return, and evaporative (EVAP) lines from the fuel tank. Be prepared for residual fuel to leak out. Cap or plug the lines to prevent contamination and further leakage.
4. Disconnect Filler Neck and Vent Hoses: Disconnect the main fuel filler neck hose and any smaller vent hoses connecting the tank to the chassis.

3.4 Remove Fuel Tank Mounting Hardware#

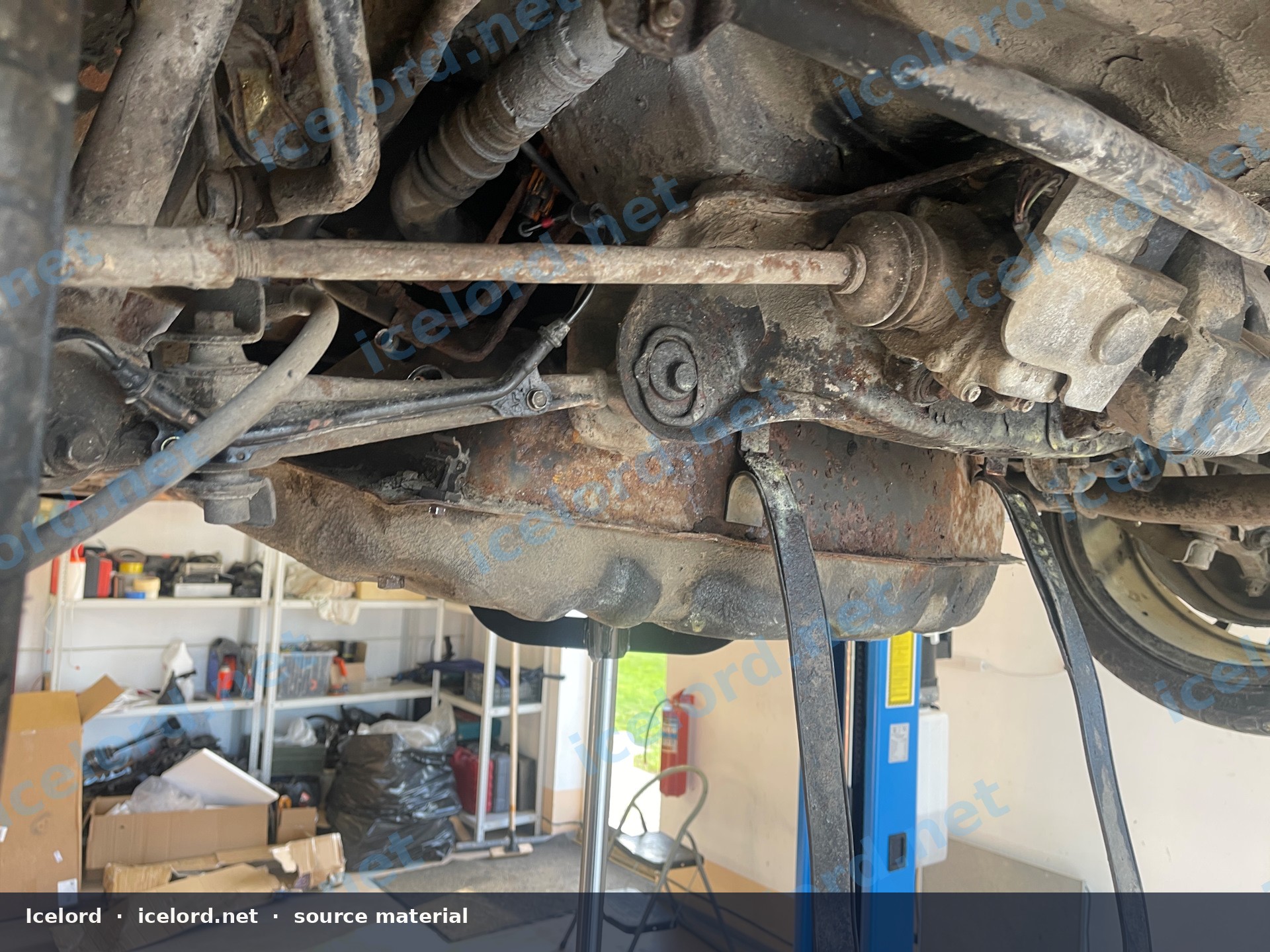

1. Support the Tank: Place a transmission jack or a sturdy support (e.g., a floor jack with a wooden block) under the fuel tank to support its weight.
2. Remove Straps/Bolts: Carefully remove the bolts or nuts securing the fuel tank straps and any other mounting points to the vehicle chassis. Note the position of any heat shields or protective plates.

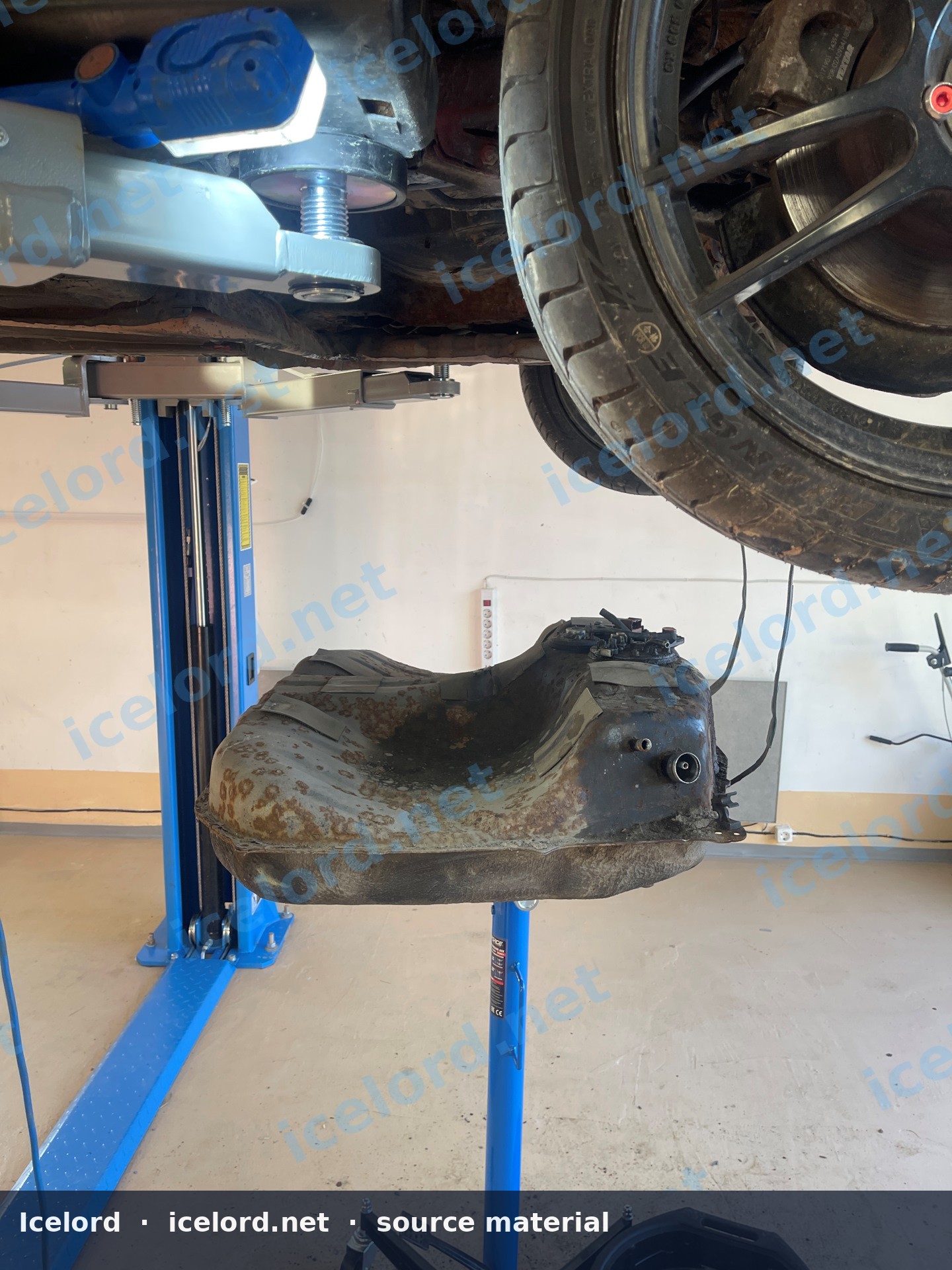

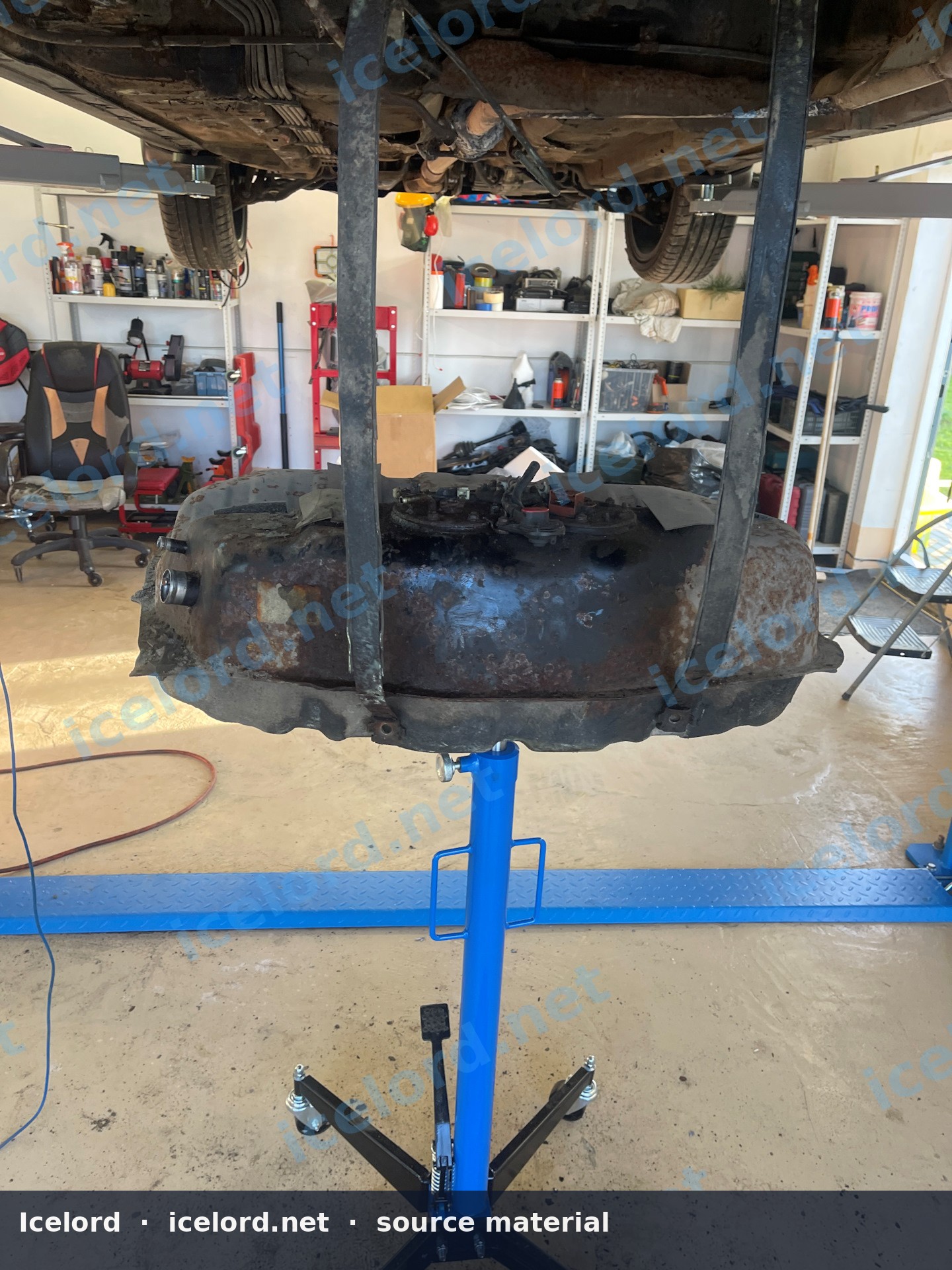

3. Lower the Tank: Slowly and carefully lower the fuel tank, ensuring all lines and wires are completely disconnected and clear. Maneuver the tank out from under the vehicle.

4. Inspection and Repair/Replacement#

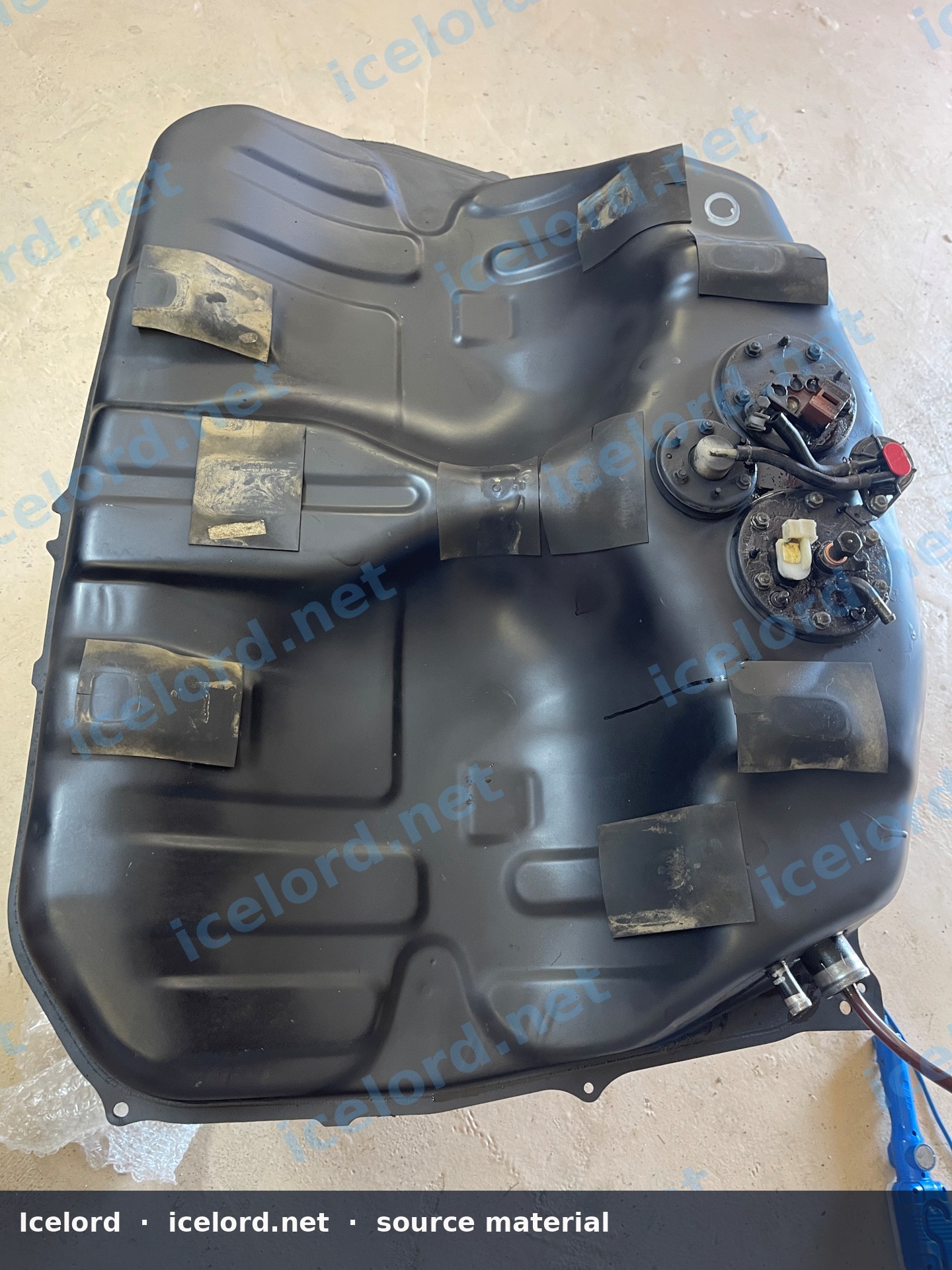

4.1 Inspect the Removed Fuel Tank#

Thoroughly inspect the fuel tank for:

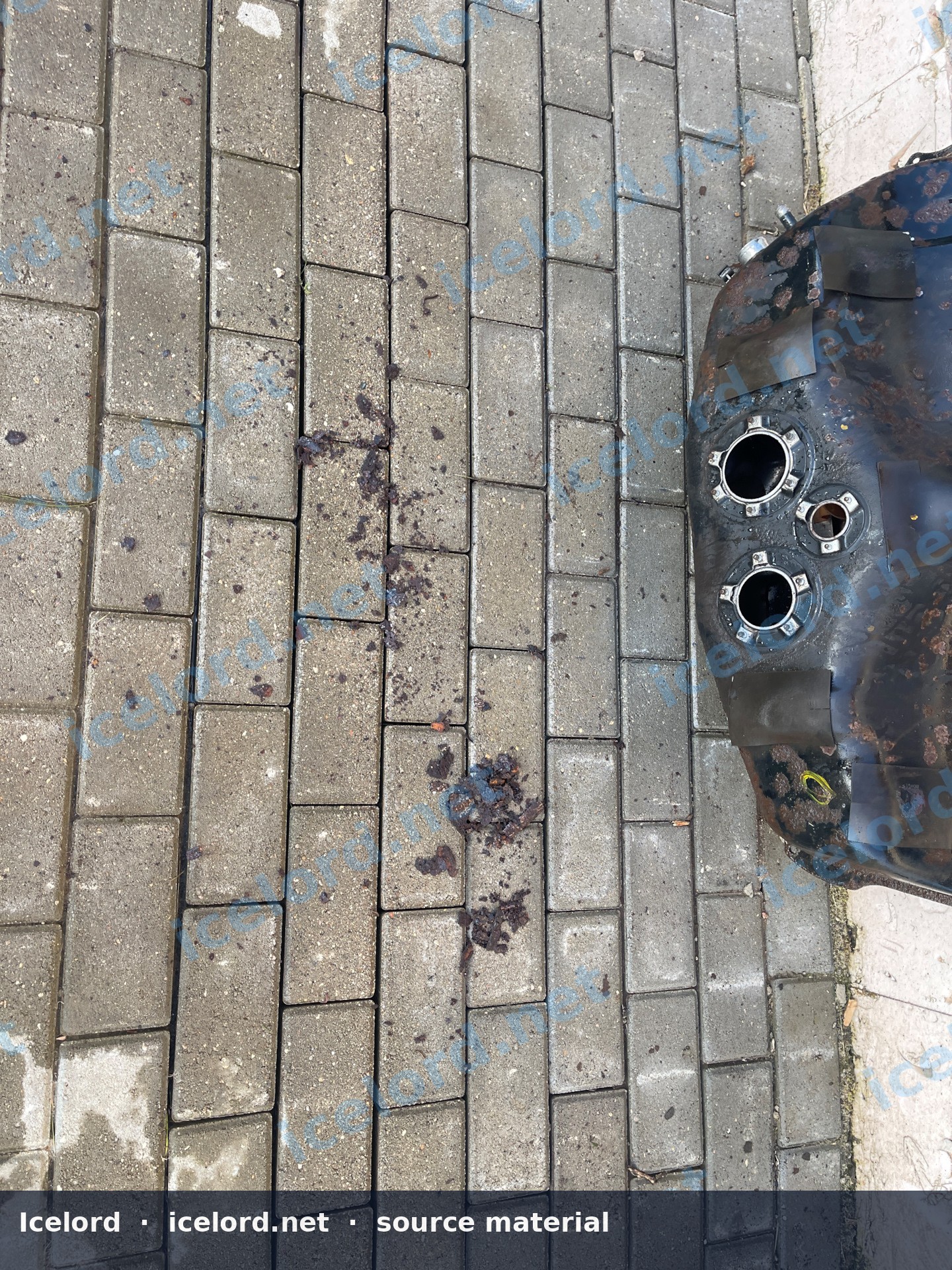

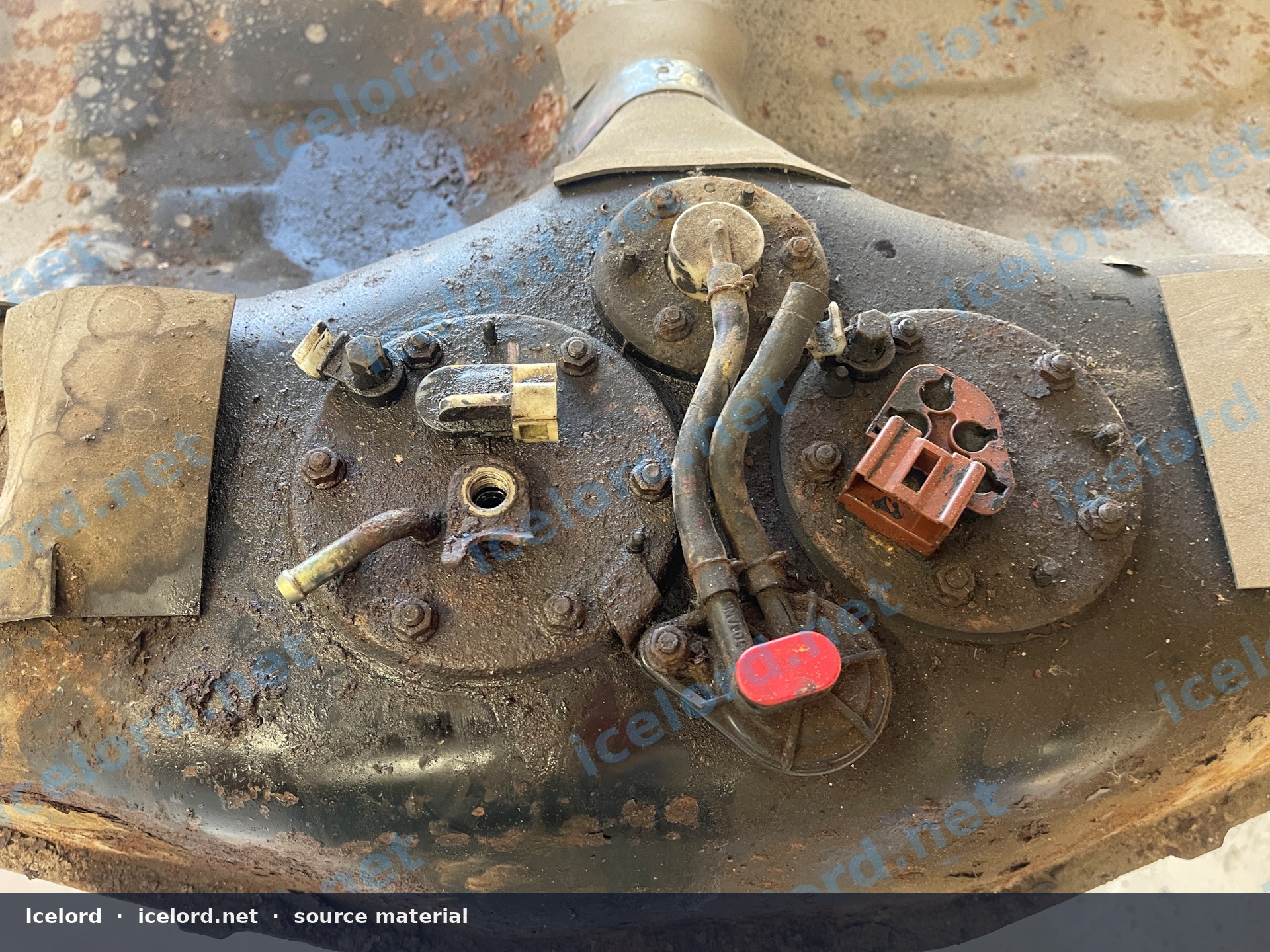

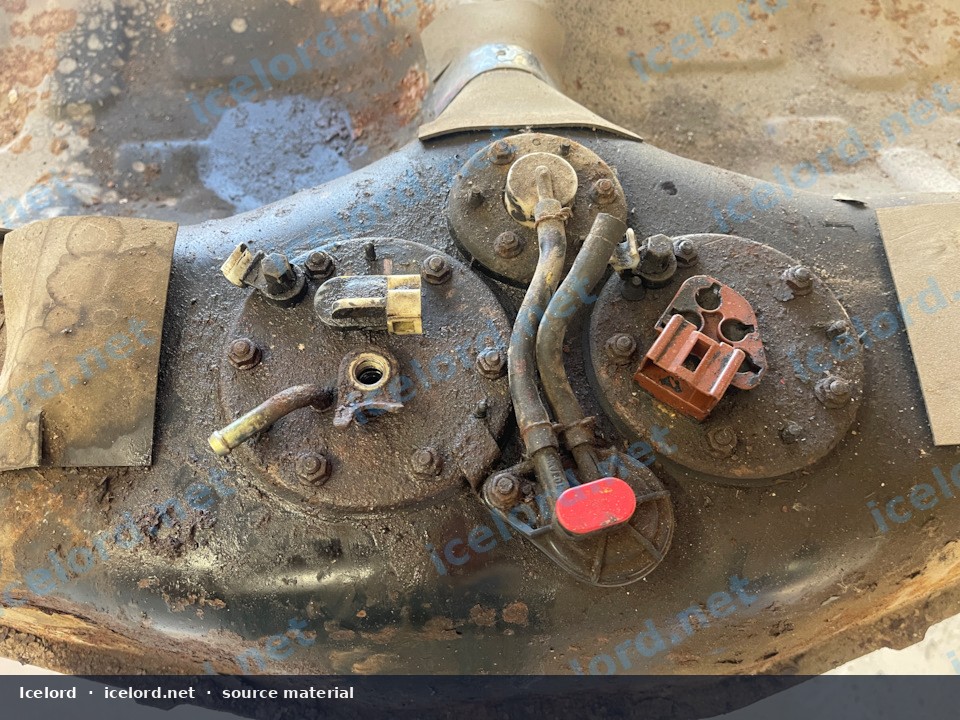

• External Corrosion: Look for rust, especially around seams, mounting points, and areas where moisture or road salt may accumulate. Pay close attention to the top surface where the fuel pump and sender mount.

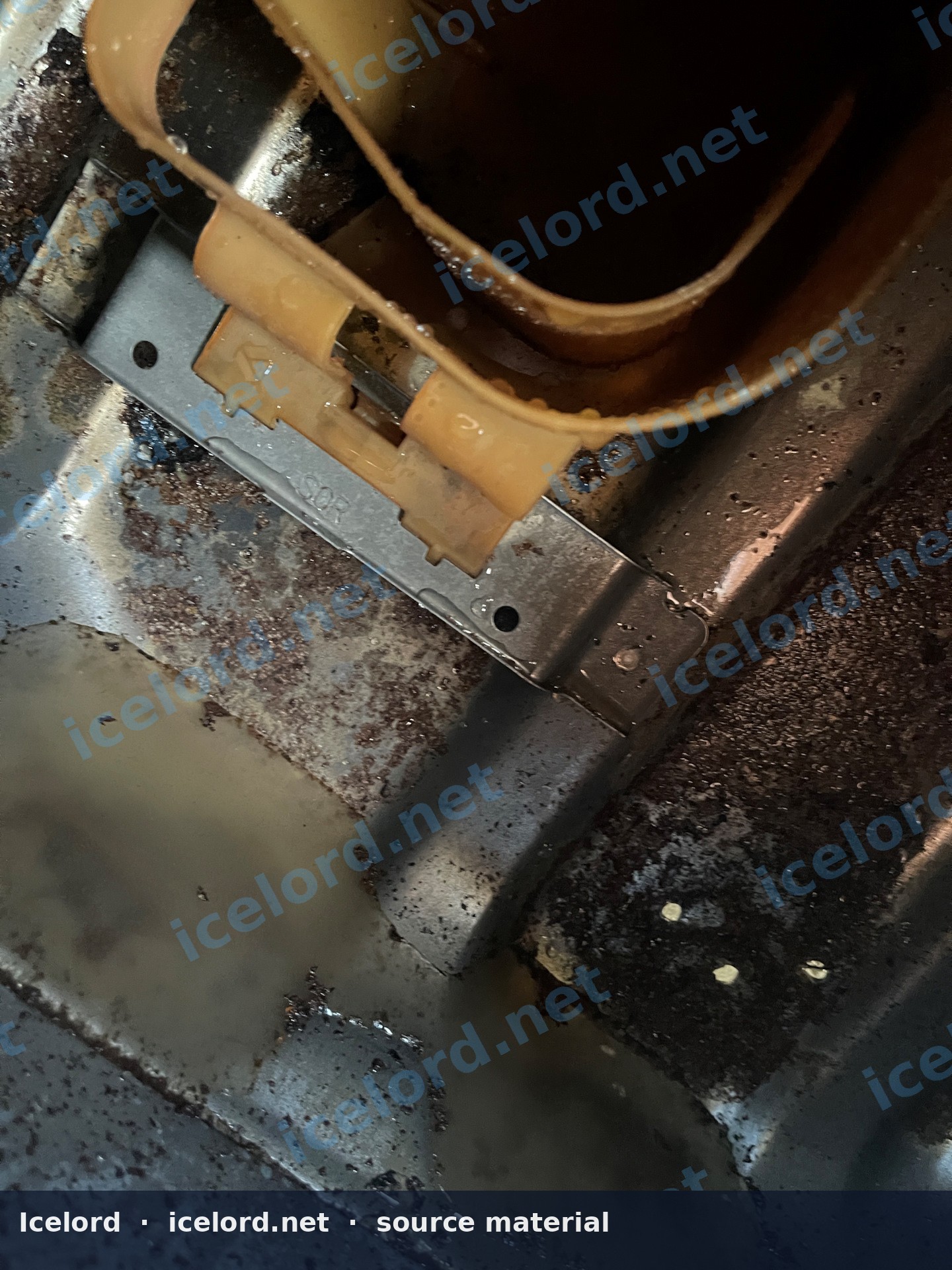

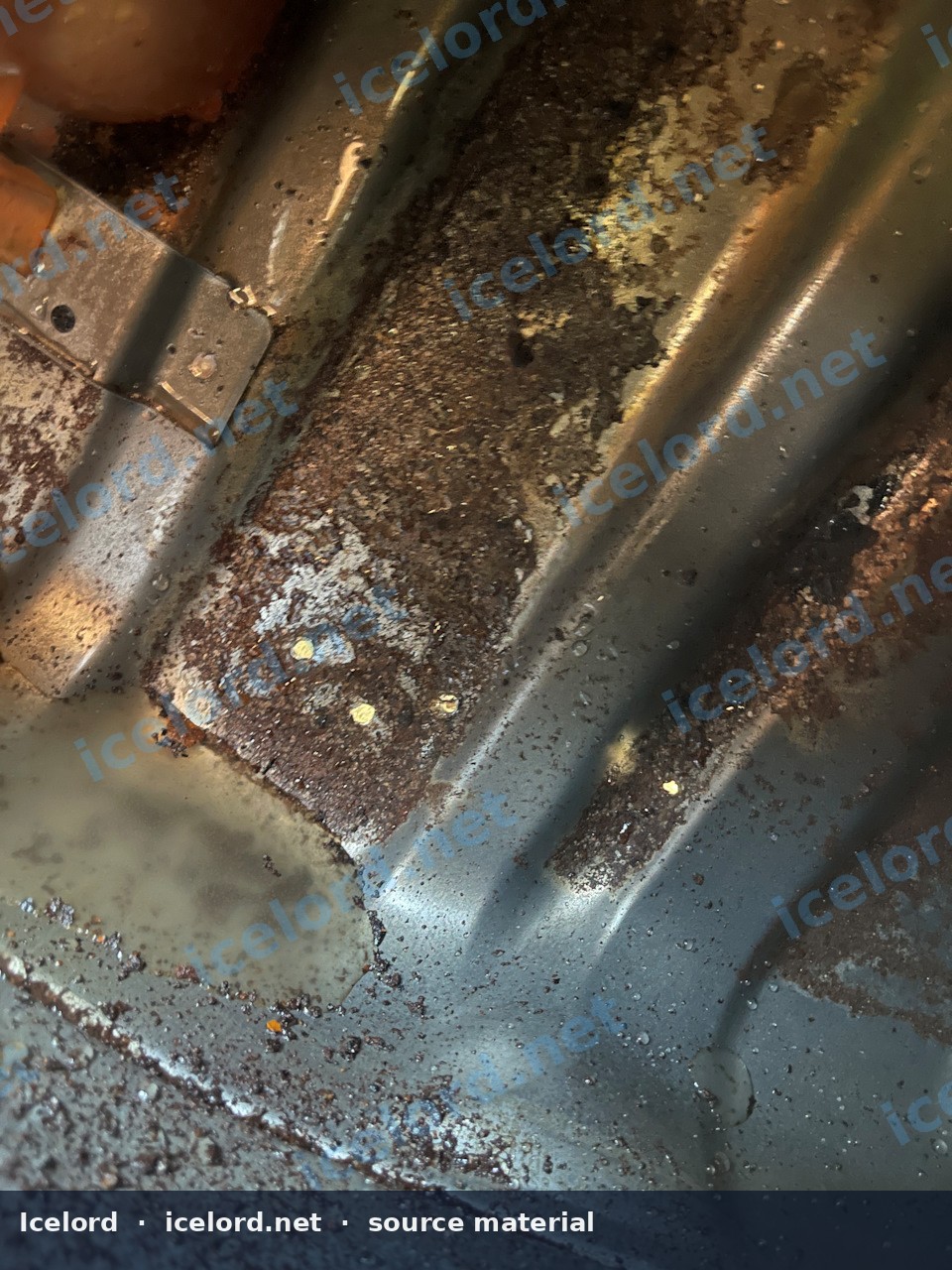

• Internal Corrosion: If possible, inspect the inside of the tank for rust, debris, or sediment. The fuel level sender unit is particularly susceptible to internal corrosion, as noted in source material.
• Leaks: Check for any signs of fuel leaks or previous repairs.

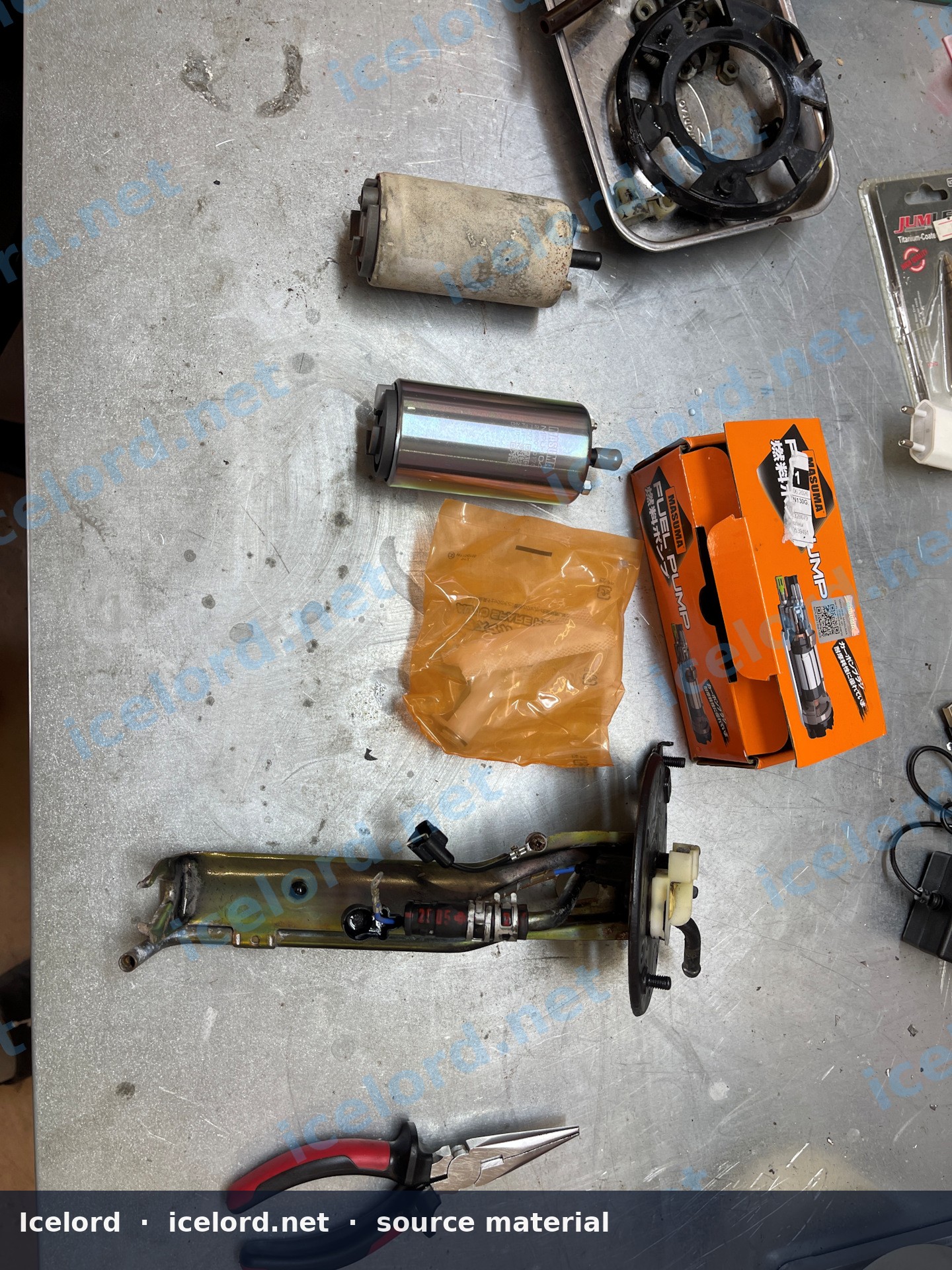

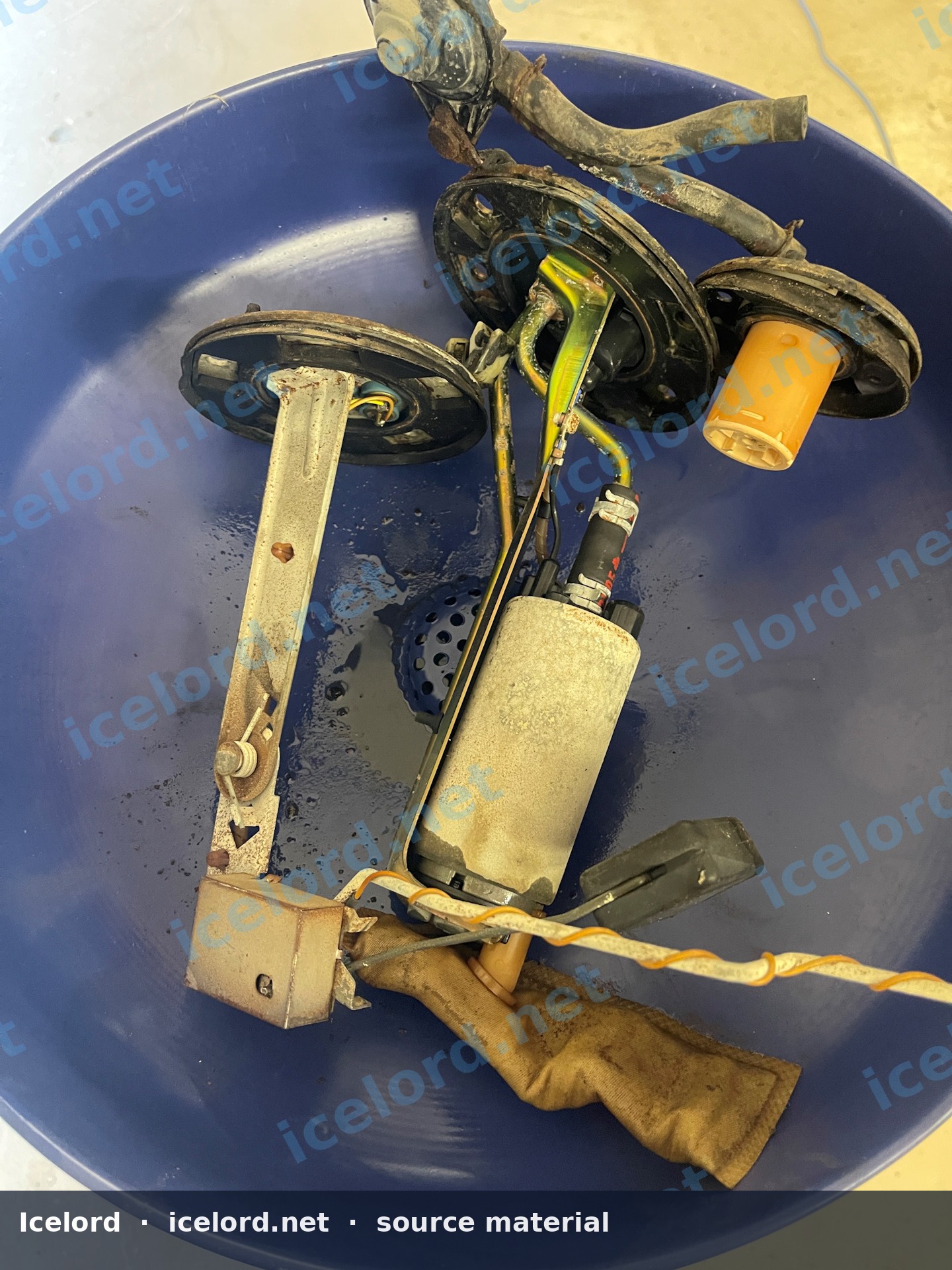

• Component Condition: Examine the fuel pump, fuel level sender, and associated wiring and hoses for damage, corrosion, or wear. Replace any components that show signs of degradation.

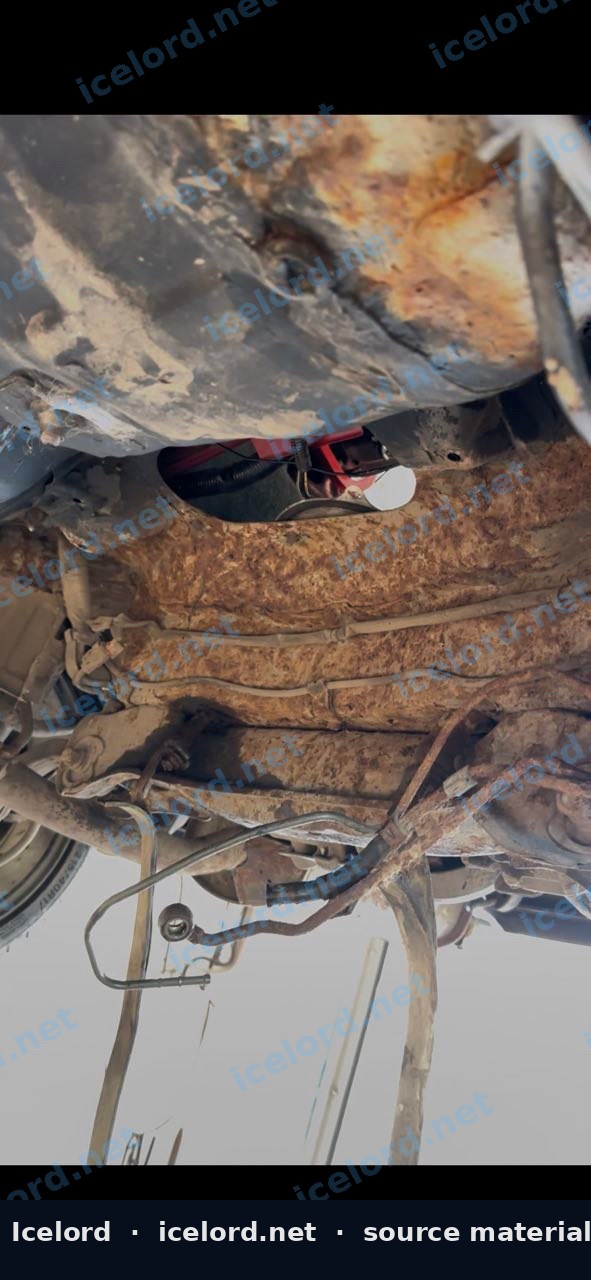

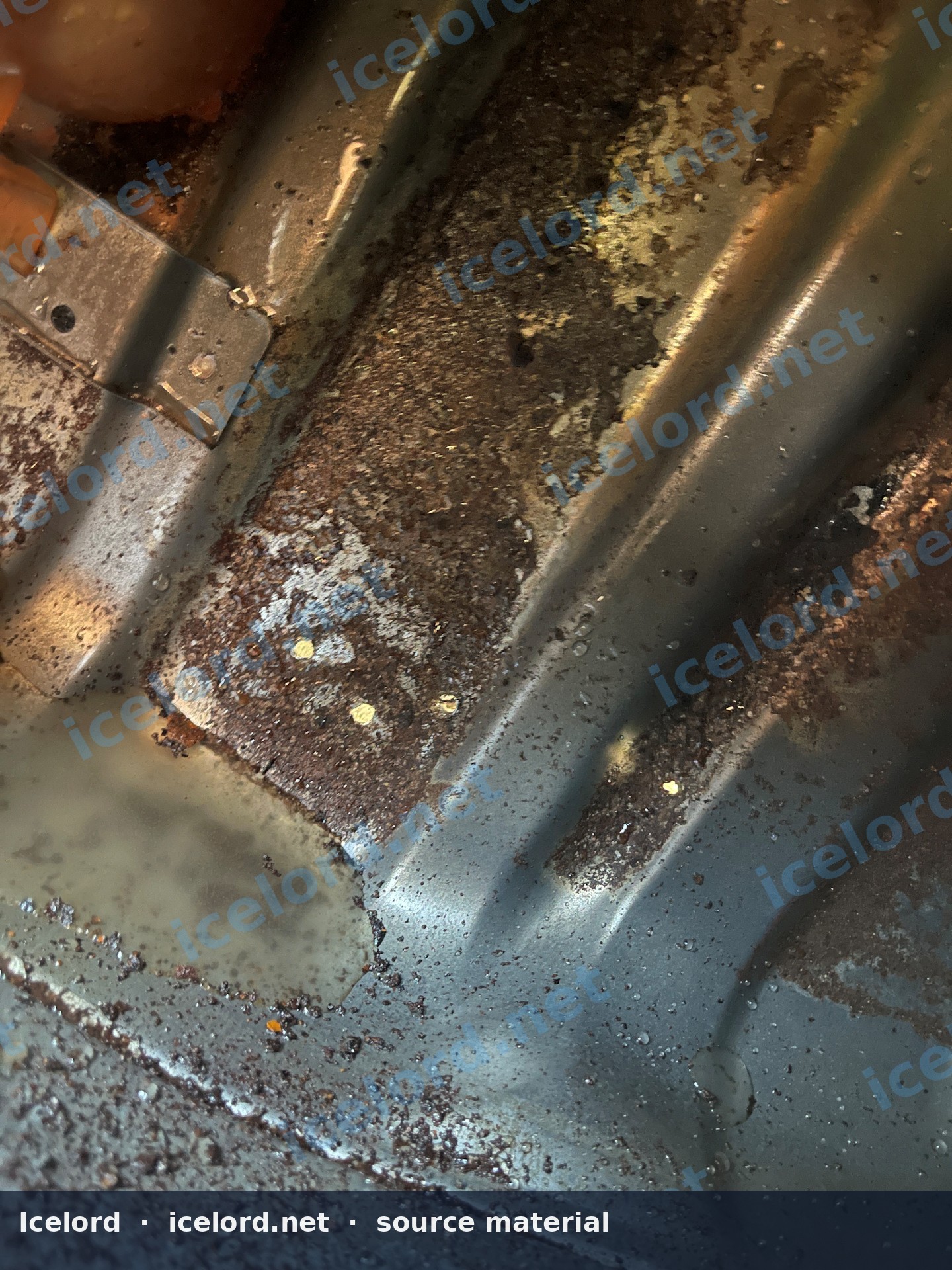

4.2 Inspect Chassis and Surrounding Areas#

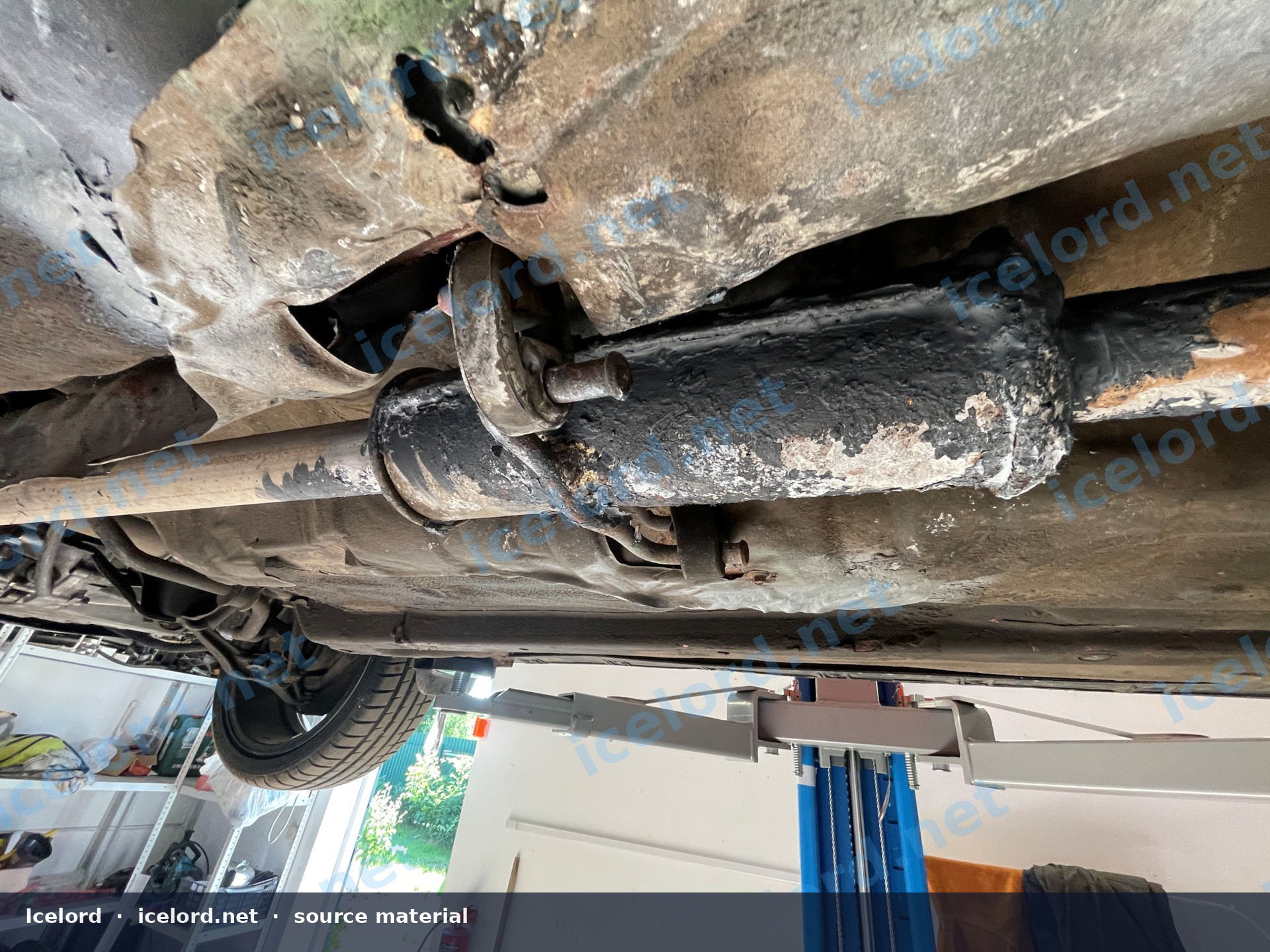

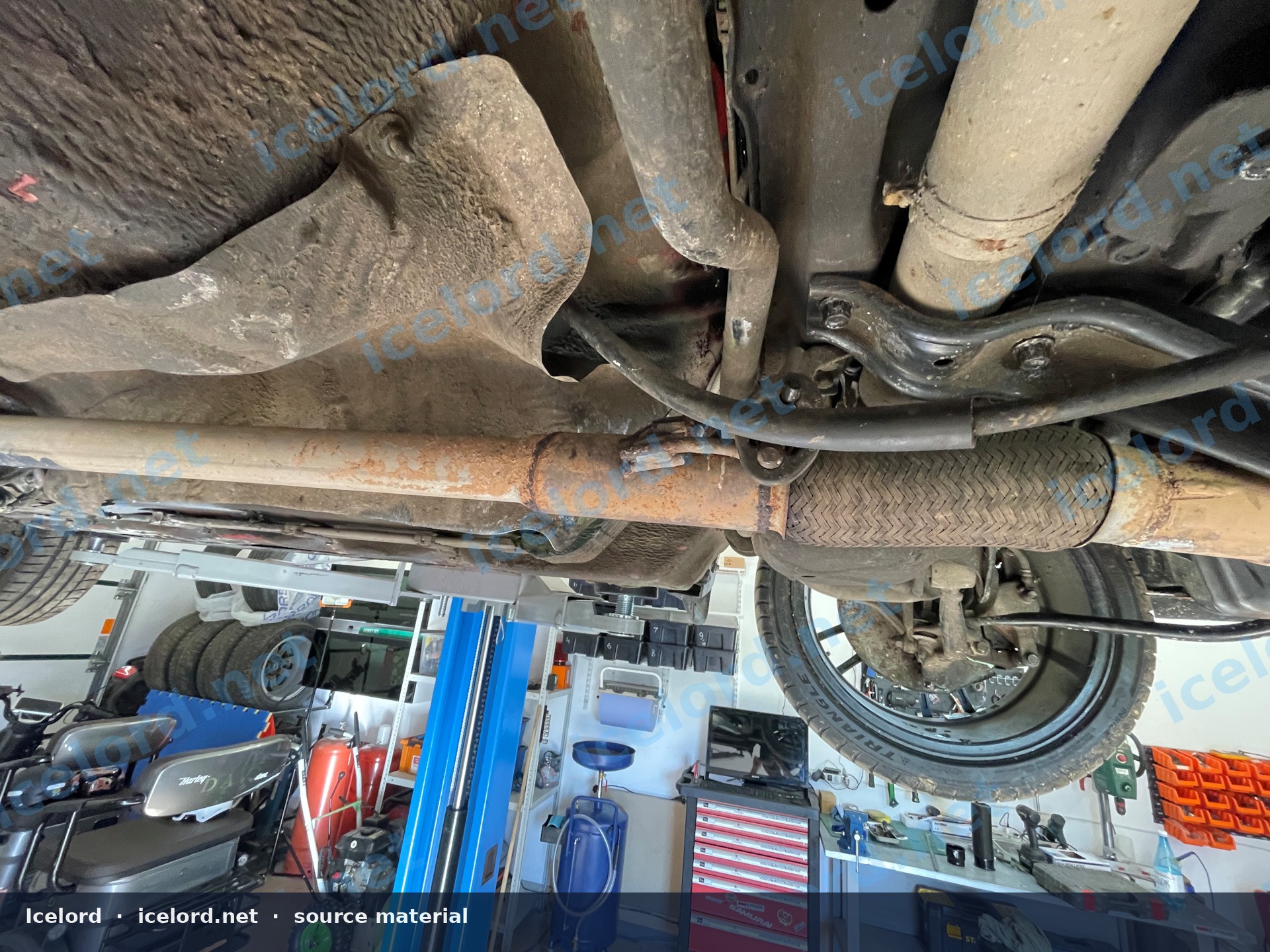

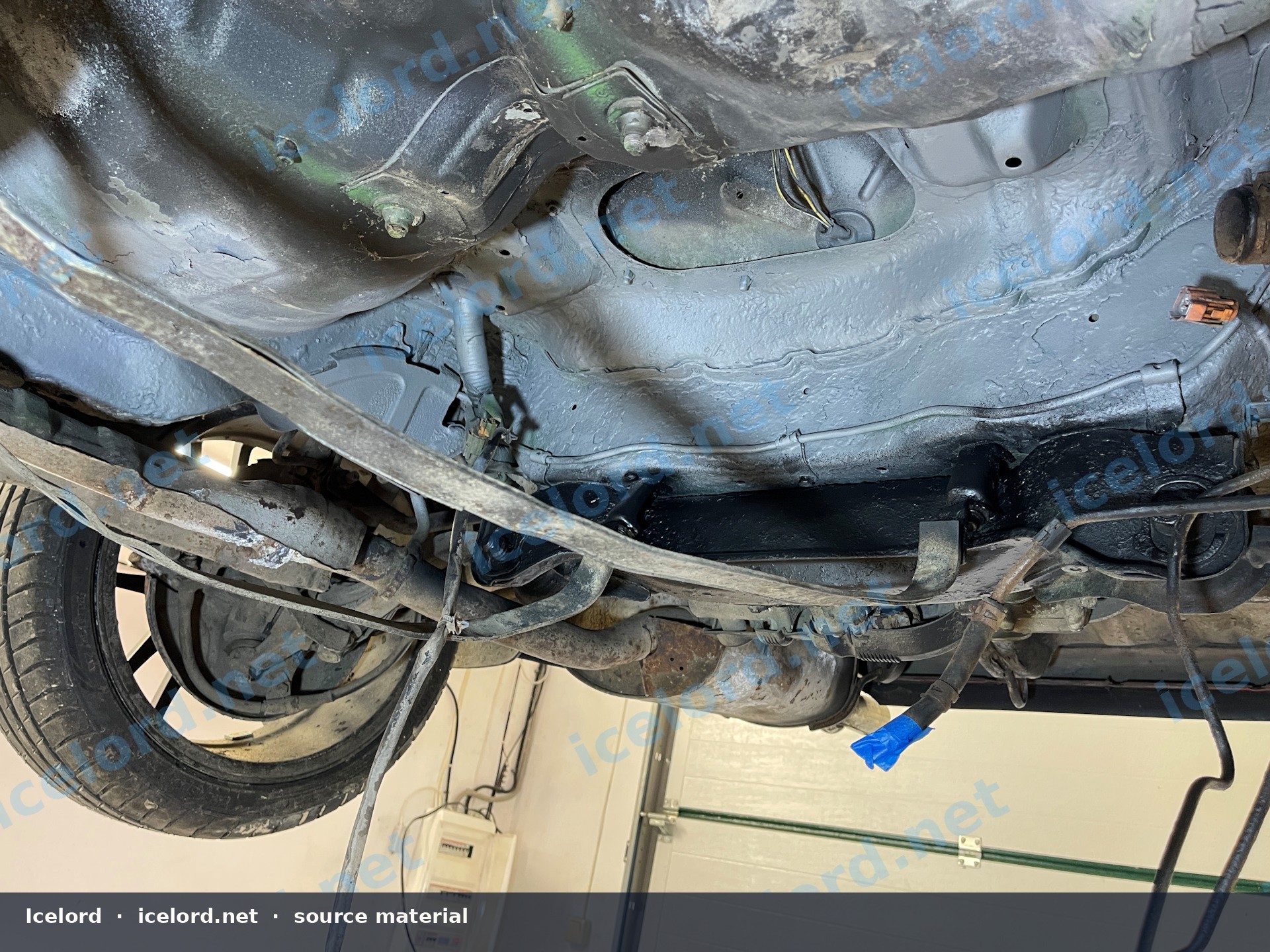

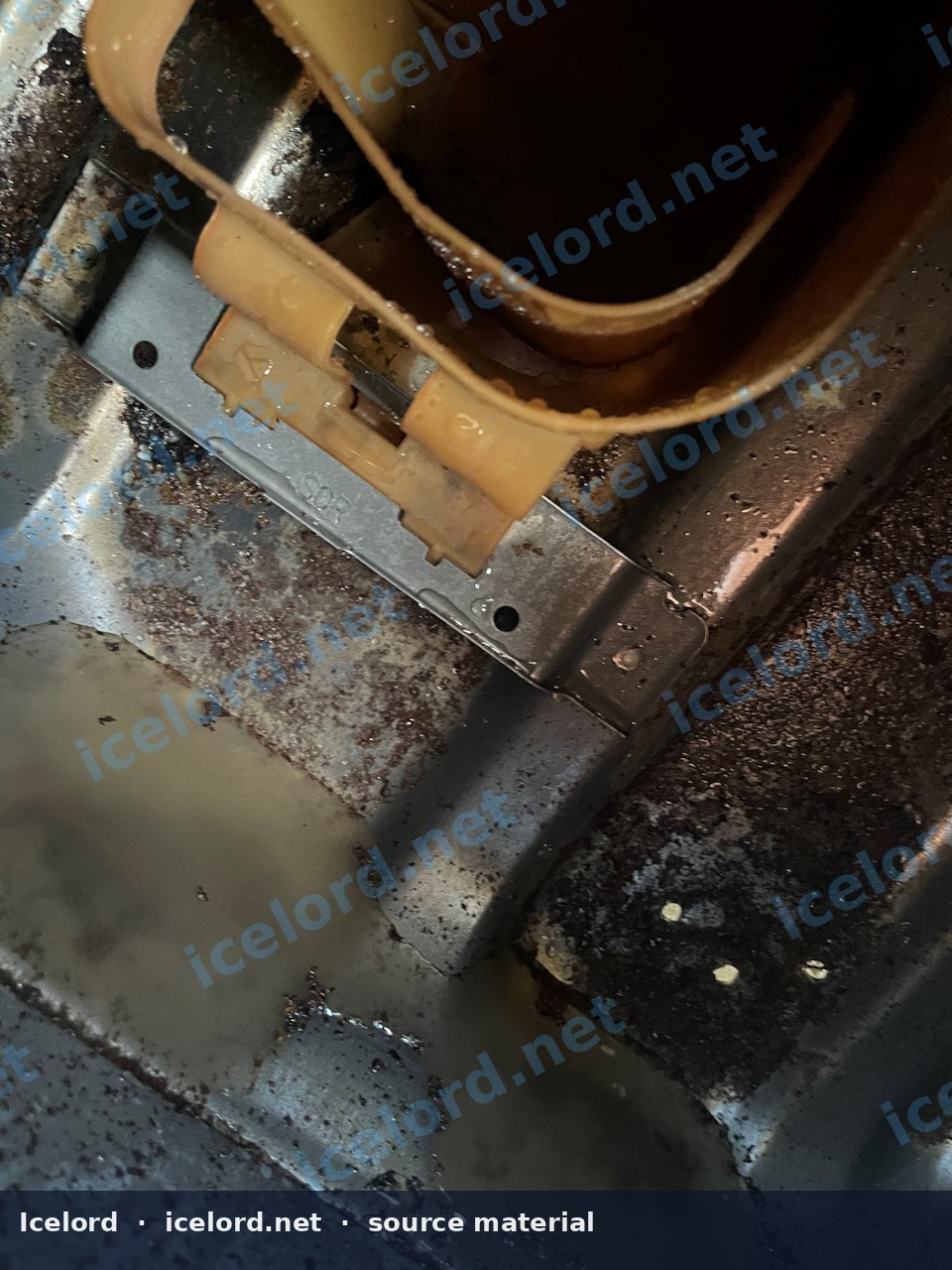

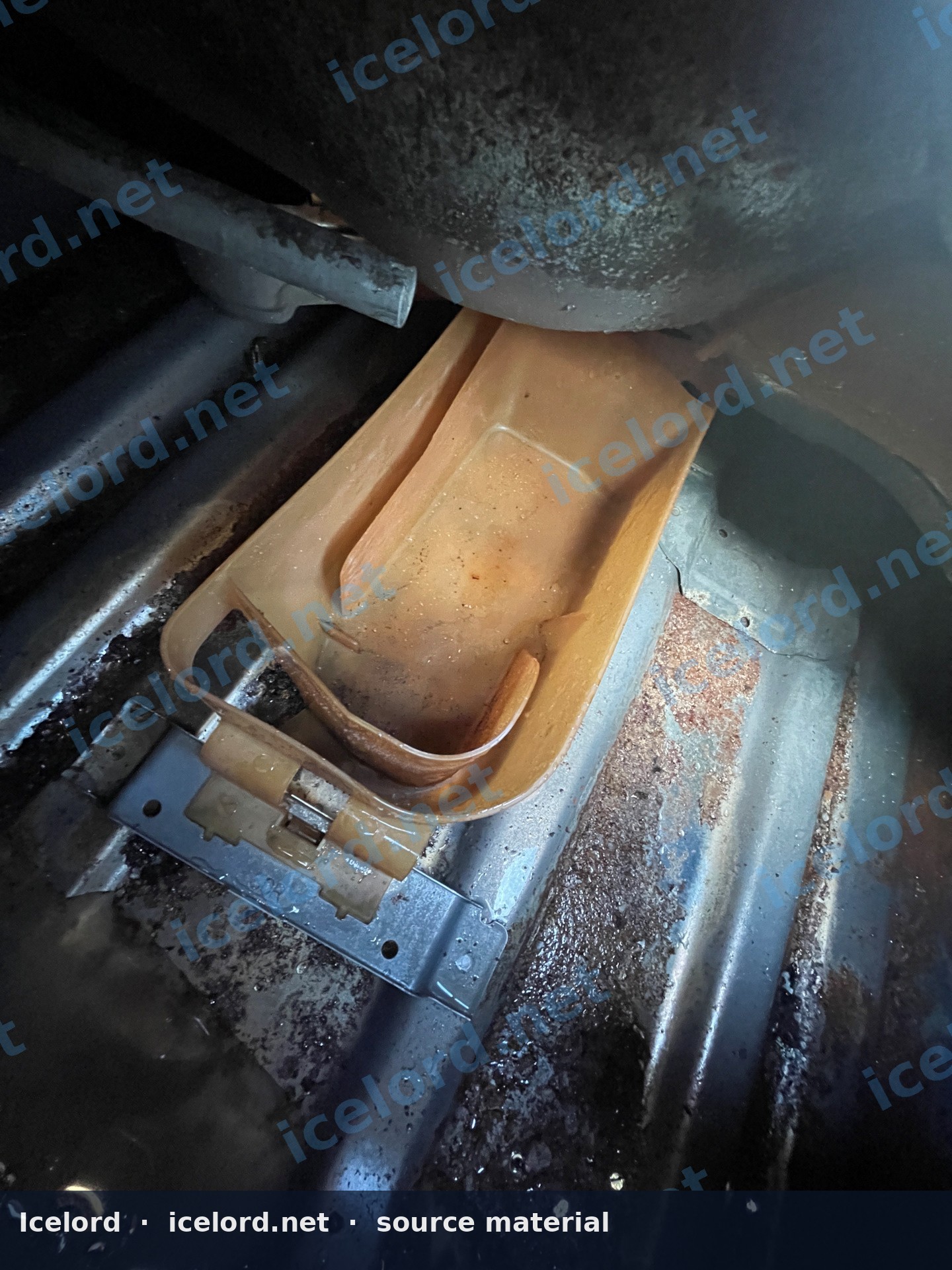

While the fuel tank is removed, take the opportunity to inspect the vehicle's chassis, frame rails, and underbody areas that were previously obscured by the tank. Address any surface rust or corrosion found using a wire brush, rust converter (like phosphoric acid), primer, and undercoating to prevent future issues.

4.3 Repair or Replace?#

Note

The decision to repair or replace a fuel tank depends on the extent of the damage. For severe corrosion or multiple leaks, replacement is generally the safest and most reliable option.

• Repair (Minor Damage): Small pinholes or minor leaks might be repairable through soldering. For internal rust, options include:
  • Zinc Plating (Galvanic): Provides an atomic bond but requires significant quantities of zinc sulfate, a large anode, and high current, making it complex for home application. Disposal of electrolyte is also a concern.
  • Cold Zinc Application: Involves applying a zinc-rich coating, offering a thicker, more durable layer without the need for electrolytes or electricity. However, application through small openings can be challenging.
  • Fuel-Resistant Coatings: Specialized internal coatings or paints designed to withstand fuel exposure can be applied after thorough cleaning and rust removal (e.g., with concentrated phosphoric acid).
• Replacement (Severe Damage): If the tank is extensively corroded, has large holes, or if internal rust is severe, sourcing a replacement tank is recommended. Used tanks from vehicles in rust-free climates (e.g., from Japan) are often a viable option.

5. Fuel Tank Reassembly and Installation#

5.1 Prepare the Replacement/Repaired Tank#

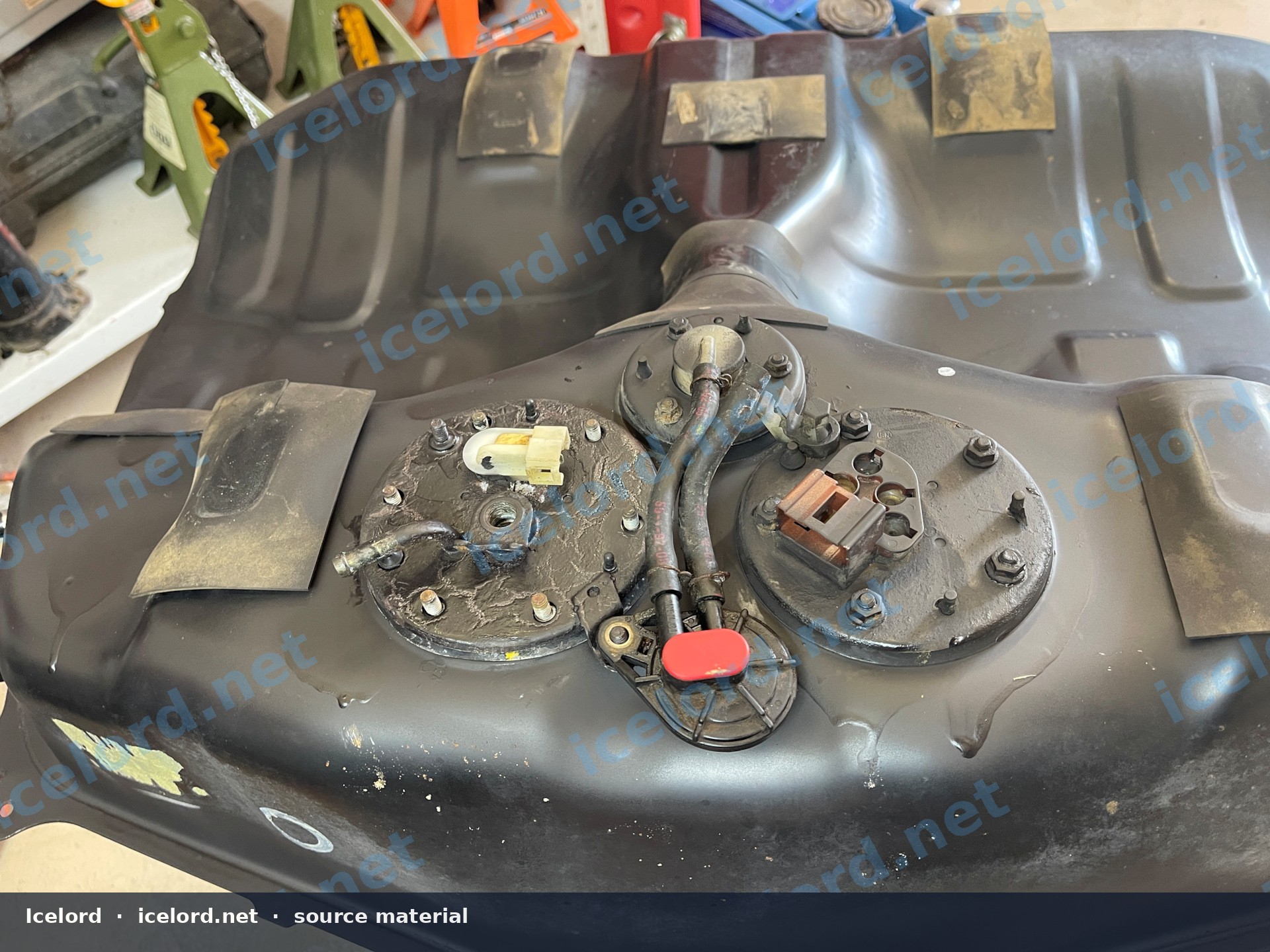

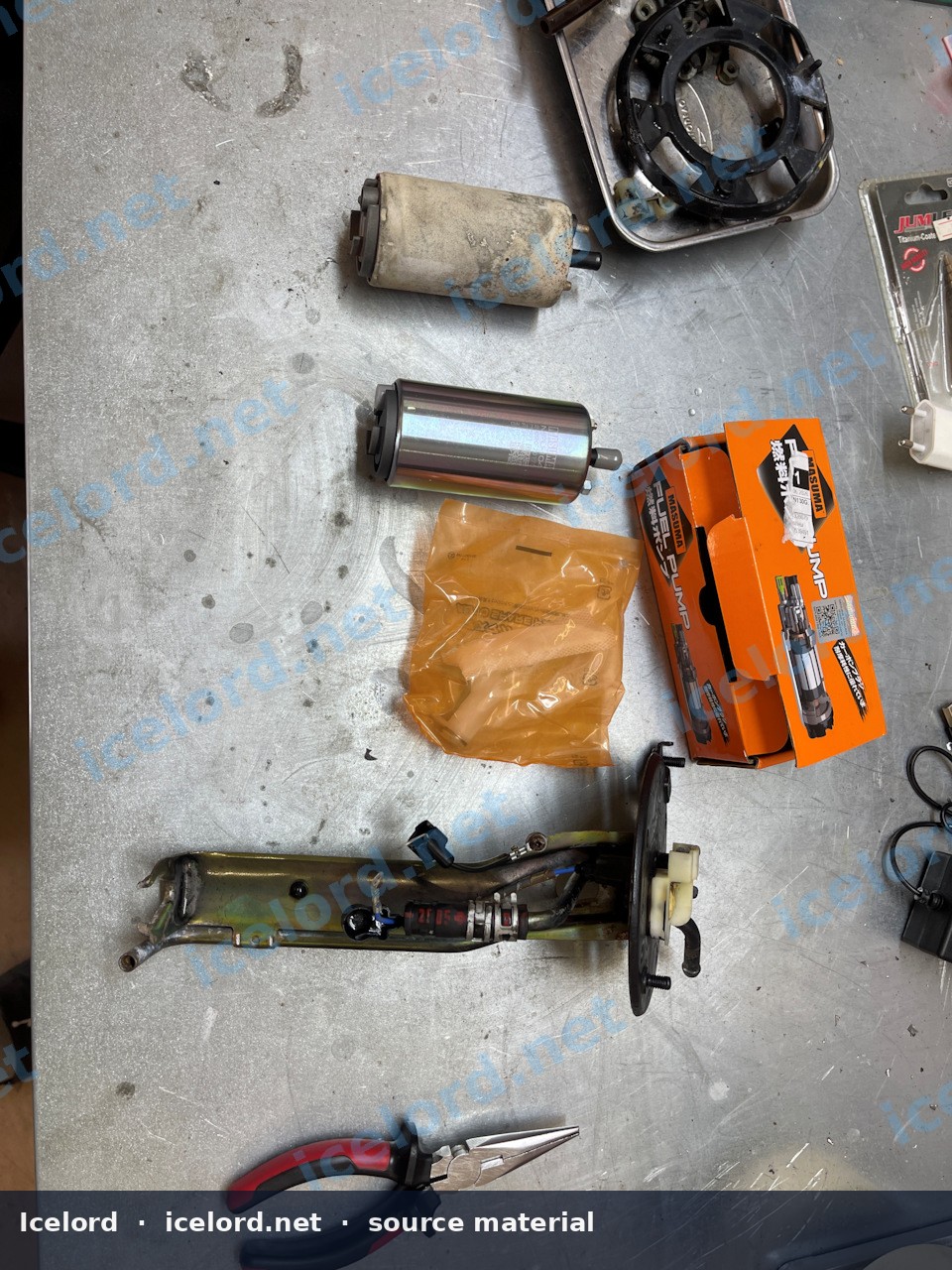

1. Install Internal Components: If installing a new tank or transferring components, install the fuel pump assembly and fuel level sender unit into the tank. Always use new gaskets and O-rings to ensure a leak-free seal.
2. Refresh Hardware: Clean or replace any corroded mounting bolts, nuts, and straps. This prevents future issues and ensures secure installation.

5.2 Install the Fuel Tank#

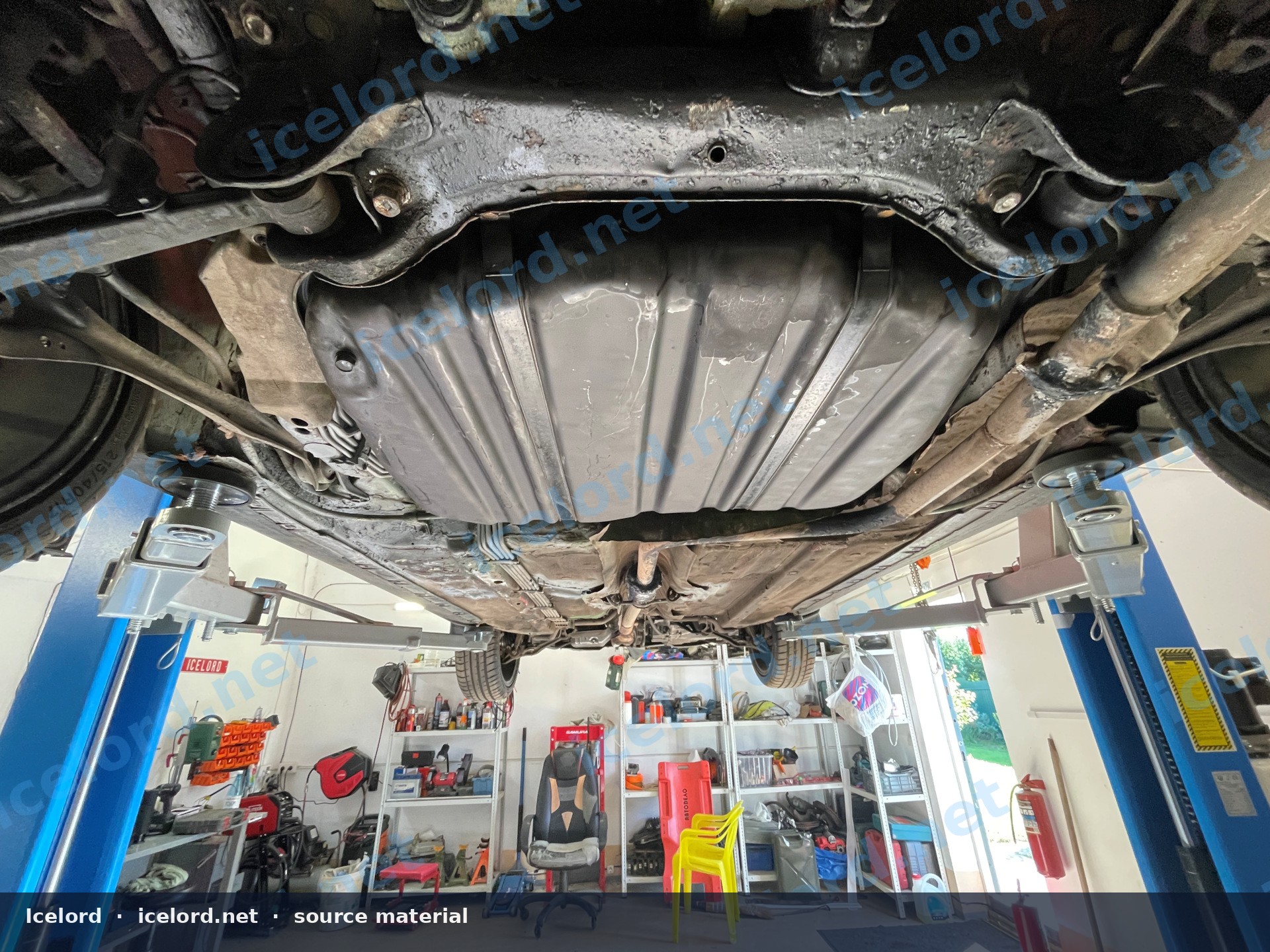

1. Position the Tank: Carefully lift the prepared fuel tank into position under the vehicle using a transmission jack or support. Ensure proper alignment.
2. Secure Mounting Hardware: Install the fuel tank straps and mounting bolts. Tighten fasteners to the torque specifications provided in the factory service manual.
3. Connect Hoses and Lines: Reconnect the fuel supply, return, EVAP, and filler neck hoses. Ensure all clamps are secure and hoses are routed correctly.
4. Connect Electrical: Reconnect the electrical connectors for the fuel pump and fuel level sender.

5.3 Final Steps#

1. Refill Fuel: Add a small amount of fuel to the tank and inspect for any leaks immediately.
2. Lower Vehicle: Carefully lower the vehicle.
3. Reconnect Battery: Reconnect the vehicle's battery.
4. Prime Fuel System: Turn the ignition key to the ON position for a few seconds (without starting the engine) to allow the fuel pump to prime the system. Repeat this a few times.
5. Start Engine: Start the engine and check for any fuel leaks around the tank and fuel lines. Allow the engine to run for several minutes.
6. Verify Operation: Confirm that the fuel gauge is functioning correctly.

Note

Always refer to the official Honda factory service manual for specific torque values, detailed wiring diagrams, and model-specific procedures for your fourth-generation Prelude.
