P51 ECU Technical Reference

Technical reference for the P51 OBD1 ECU found in the 1992-1993 JDM Honda Ascot Innova 2.3L Si-Z (H23A).

Beginner 4

sens Author

The P51 ECU is an OBD1 engine control unit utilized in the 1992–1993 JDM Honda Ascot Innova 2.3L Si-Z, equipped with the H23A DOHC non-VTEC engine.

ECU Overview

Feature Specification
OBD Generation OBD1
Market JDM (Japan Domestic Market)
Vehicle Ascot Innova (CC4)
Engine H23A (DOHC Non-VTEC)

Note

The P51 is a non-VTEC ECU. It is not natively compatible with VTEC-equipped H-series engines without hardware modification and software remapping.

Hardware Identification

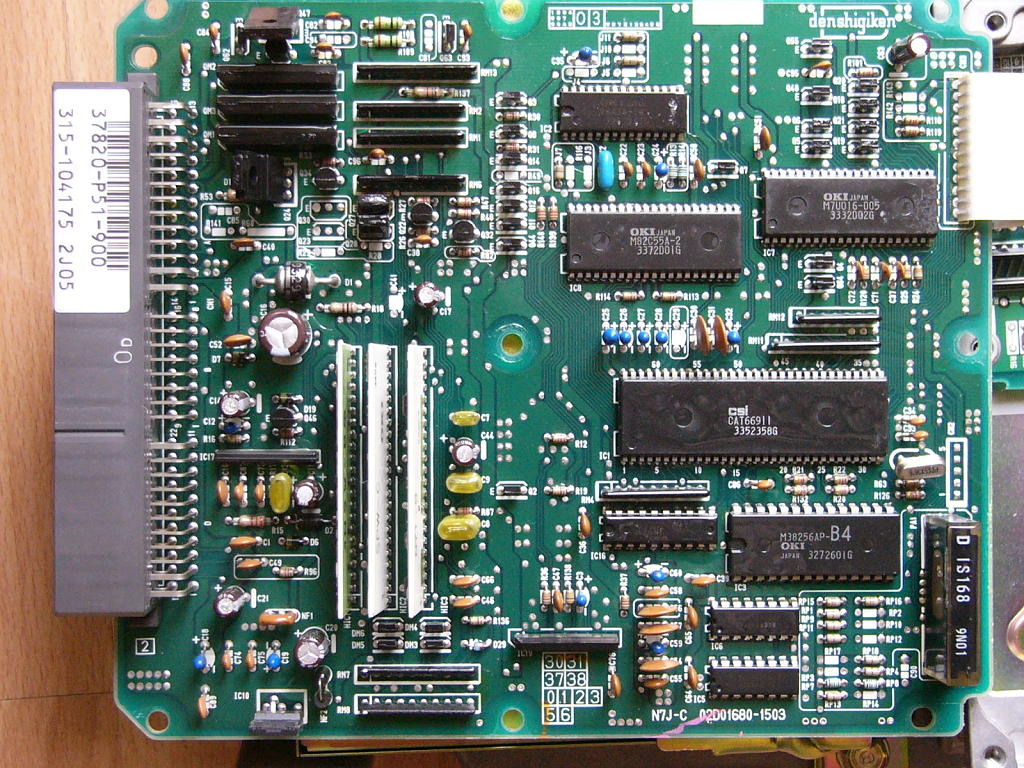

P51 ECU Front View
Front view of the P51 ECU casing
P51 ECU Back View
Back view showing the connector interface
1 / 2

Compatibility and Usage

The P51 is specific to the H23A non-VTEC platform. When performing diagnostics or tuning, ensure the following:

  • Sensor Compatibility: Verify that the engine harness matches the OBD1 pinout standard for the CC4 chassis.
  • Diagnostics: Use the standard Honda OBD1 diagnostic procedure to retrieve error codes.
OBD trouble code lookup
Code System Description & Causes
No matching codes found.

Important

Always verify the board revision and internal components before attempting to socket or chip the ECU, as JDM variants may feature different board layouts compared to USDM counterparts.
