PT5 EDM OBD1 ECU Technical Reference

Technical overview of the PT5 EDM Honda Accord OBD1 ECU, detailing its shared PCB architecture and application for the F20A7 engine.

Intermediate 3

carotman Author

The PT5 is an OBD1 ECU utilized in 1990–1993 European (EDM) Honda Accord models equipped with the SOHC non-VTEC F20A7 engine.

Note

This unit shares the same printed circuit board (PCB) architecture as the PT3 Accord ECU (Board ID: 02D01190-1504).

PCB Overview

The PT5 utilizes the 02D01190-1504 board layout. Use the following carousel to inspect the component layout and board configuration.

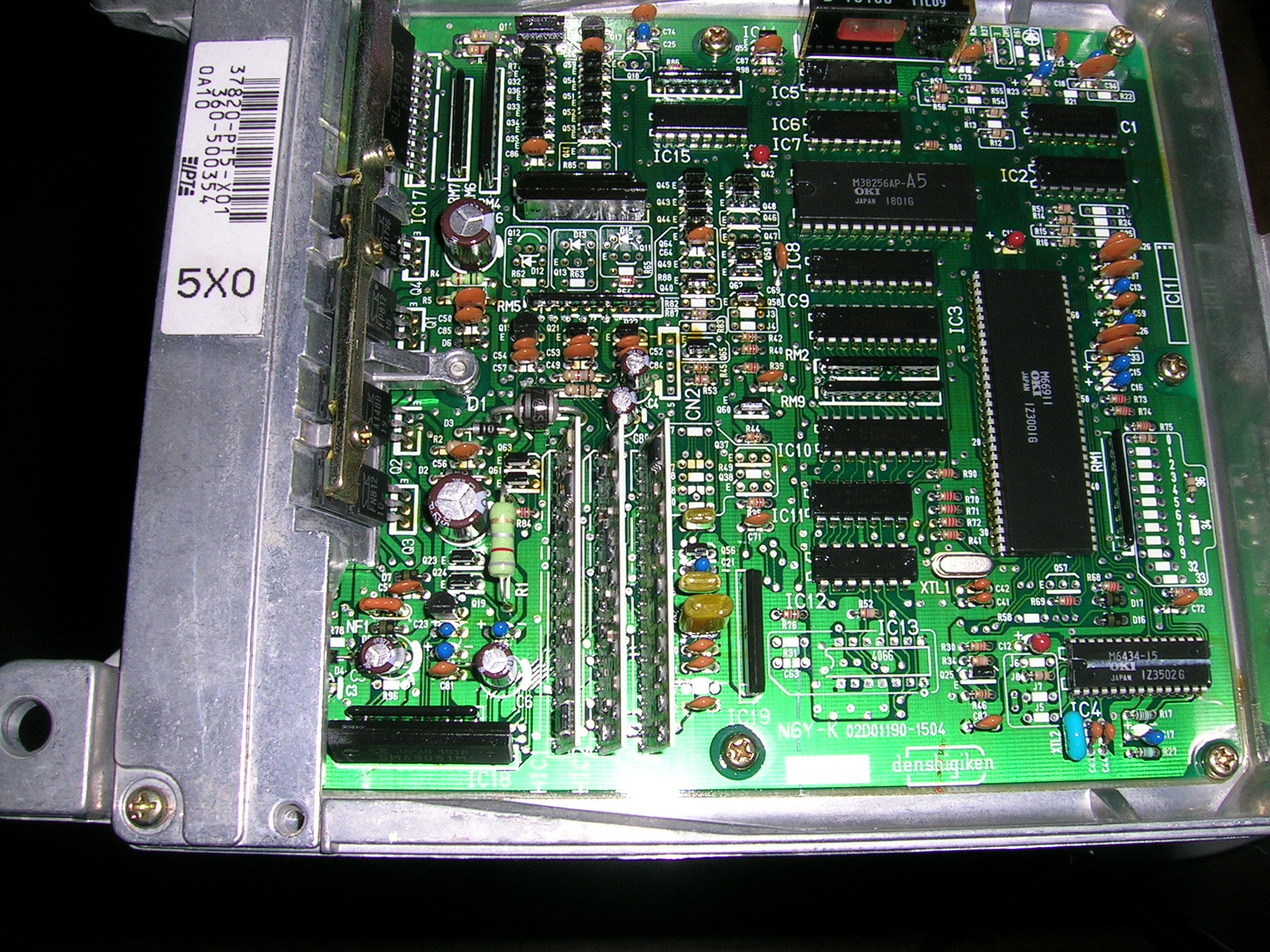

Front view of the PT5 ECU PCB
Front view of the PT5 EDM ECU PCB
Back view of the PT5 ECU PCB
Back view of the PT5 EDM ECU PCB
1 / 2

Technical Specifications

  • Application: 1990–1993 EDM Accord
  • Engine: F20A7 (SOHC Non-VTEC)
  • OBD Standard: OBD1
  • PCB ID: 02D01190-1504

Applies to

1 taxonomy link
Cars 1 link

Honda

1 link
Model Accord
Direct taxonomy match
