Overview#

Swapping a first-generation B16A VTEC engine into a 1988–1991 EF chassis Honda CRX requires converting the factory chassis wiring to support electronic fuel injection and standalone engine management. This build guide synthesizes real-world tuning and diagnostic data from extensive EF B16A project tests.

1. Engine & Chassis Specifications#

• Chassis: 1991 Honda CRX (EF chassis)
• Engine: JDM B16A 1.6L DOHC VTEC (10.4:1 Compression)
• Fuel System: 240cc stock injectors, 3-bar fuel pressure regulator, Walbro 255 LPH pump
• Management: rusEFI / Standalone ECU via OBD0-to-OBD1 conversion harness

2. Key Tuning Milestones & Calibration#

Base Map & Fuel Table#

• Fuel Strategy: Speed-Density (MAP vs RPM).
• Idle Target: 850 RPM at 14.7 AFR.
• WOT Target: 12.8–13.0 AFR in low-cam, transitioning to 12.5 AFR post-VTEC crossover.

VTEC Crossover Calibration#

• Crossover Point: Set to 5,200 RPM under load (>60 kPa manifold pressure).
• Smooth torque transition verified by aligning low-cam and high-cam volumetric efficiency curves.

3. EF Chassis Electrical Troubleshooting#

Tachometer Signal Driver#

EF CRX factory gauge cluster tachometers require a high-voltage pulse originally produced by the distributor coil. Modern standalone ECUs output a 0-12V square wave that fails to drive the cluster.

Tip

Wire a simple 1k-ohm pull-up resistor or tachometer adapter module between +12V switched power and the Blue cluster tachometer wire to restore cluster tachometer sweep.

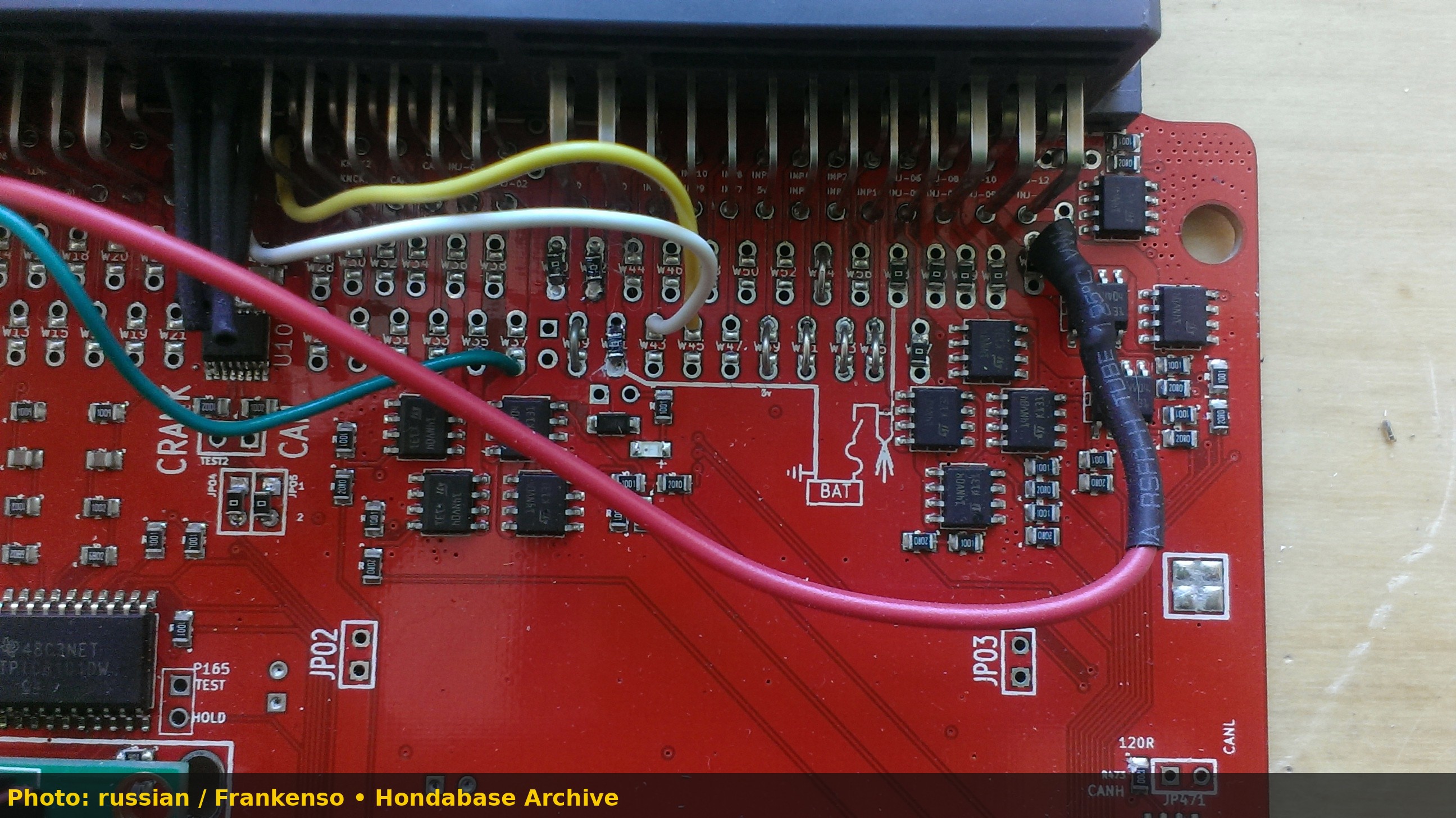

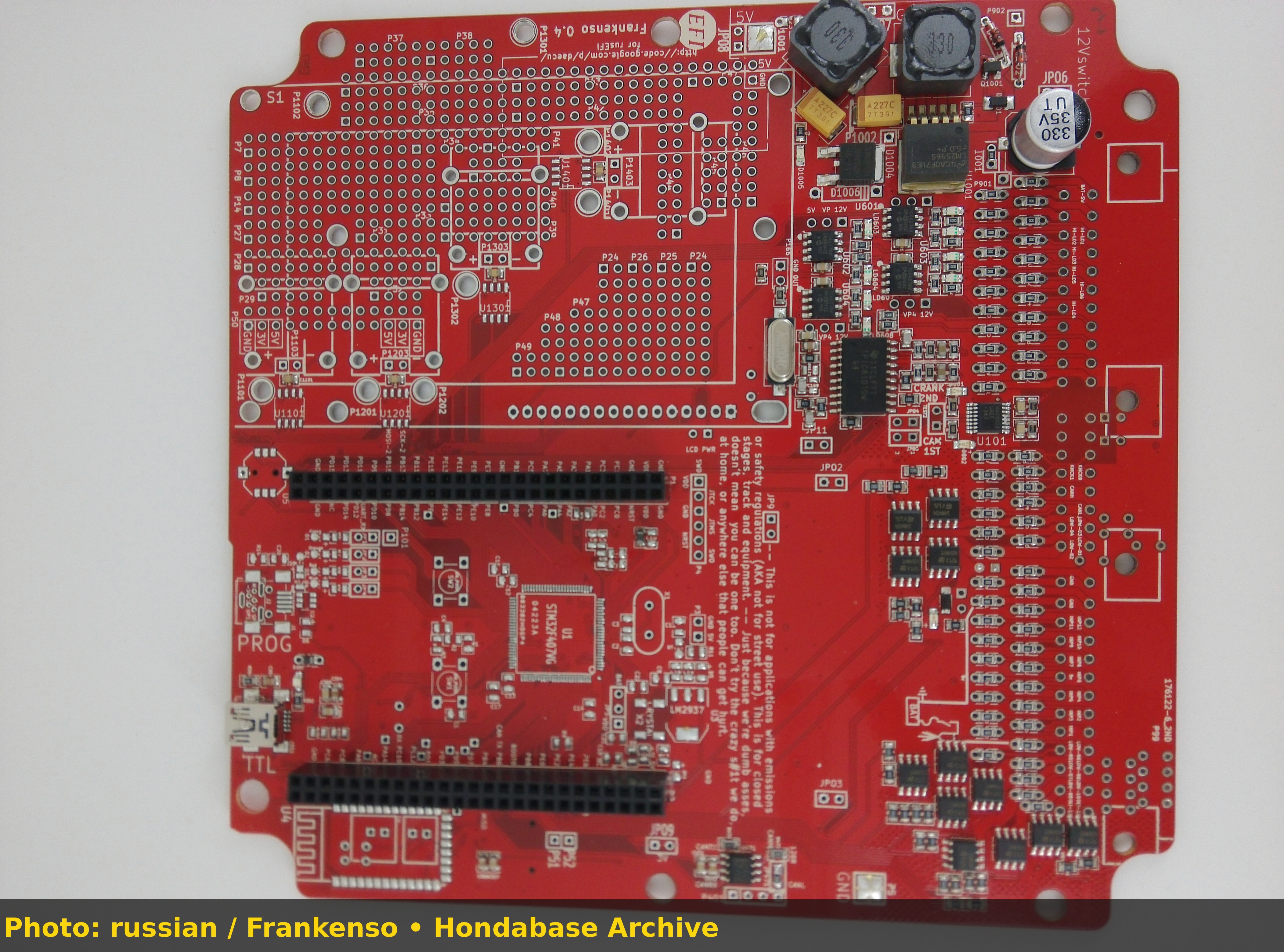

4. Standalone ECU Board & Harness Photos#

‹ 1 / 2 ›

✕ ‹

›

1 / 2

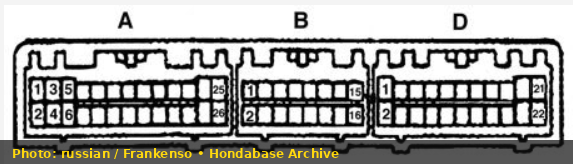

Harness Pinout Diagram#

EF chassis B16A swap ECU harness pinout and trigger input wiring.

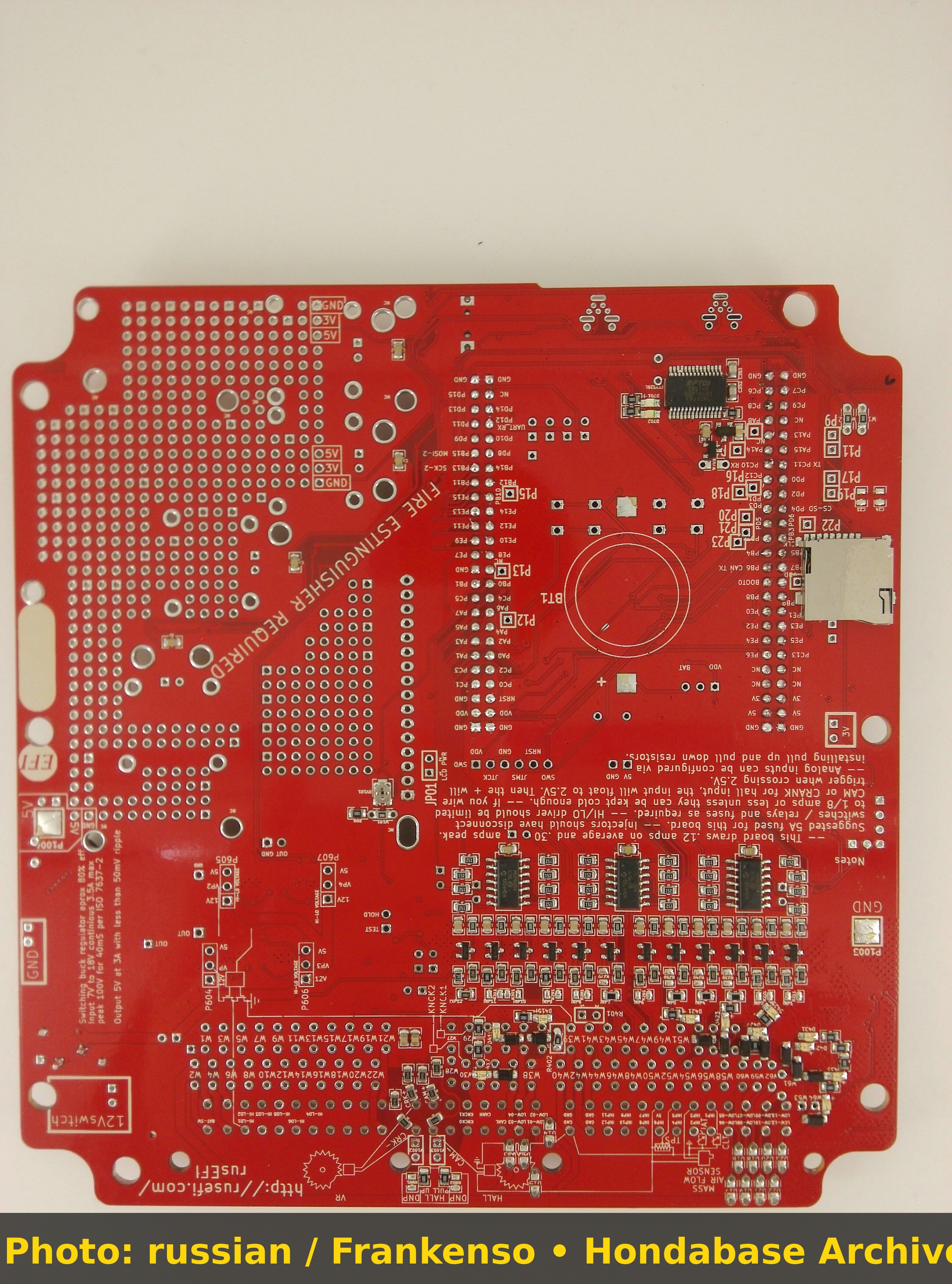

4. Standalone ECU Board & Harness Photos#

‹ 1 / 3 ›

✕ ‹

›

1 / 3

Harness Pinout Diagram#

EF chassis B16A swap ECU harness pinout and trigger input wiring.
