P07 OBD1 ECU Reference (Civic VX)
Technical analysis of the P07 Honda Civic VX OBD1 ECU, featuring unique dual-processor architecture for lean-burn control.

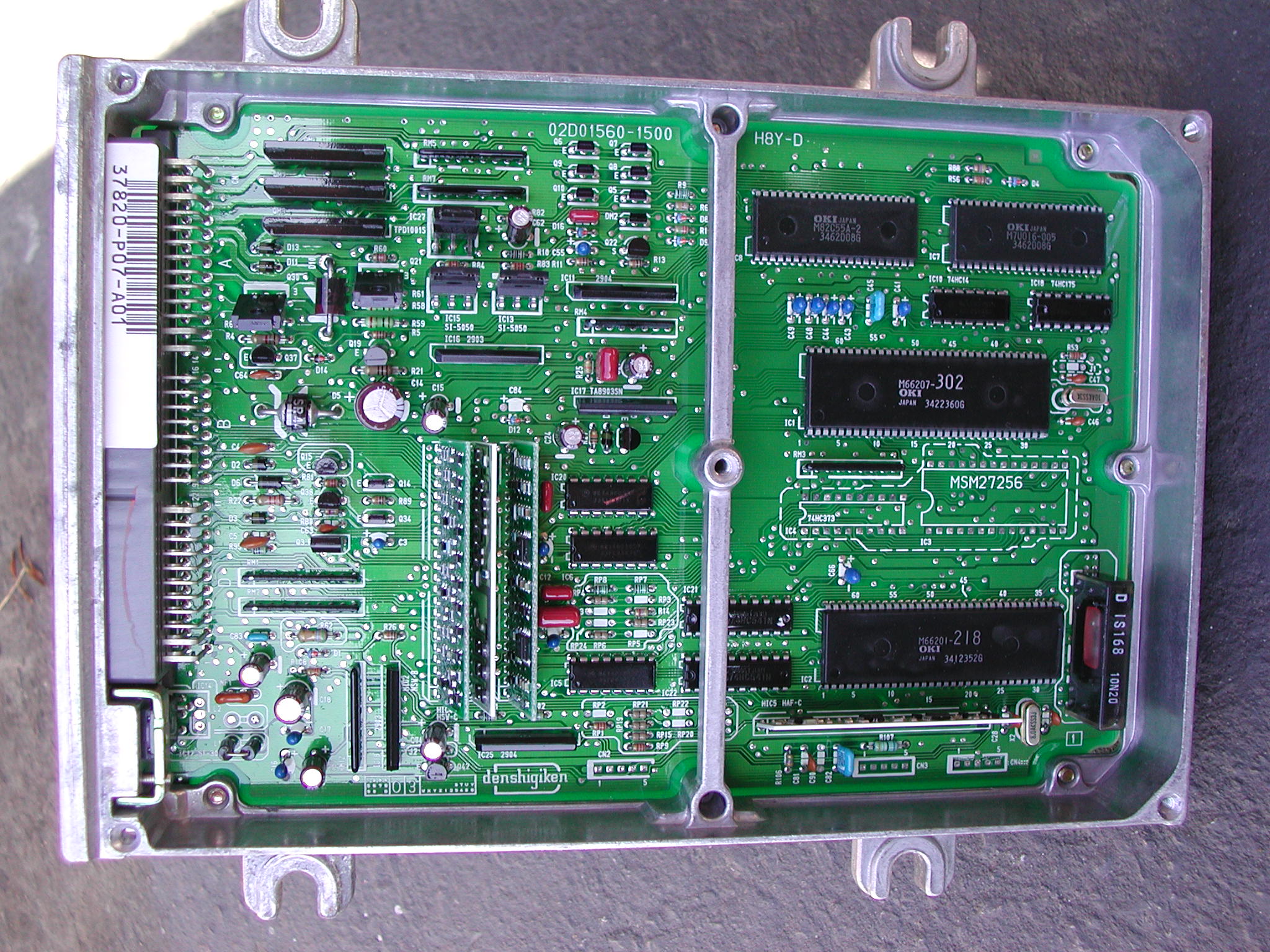

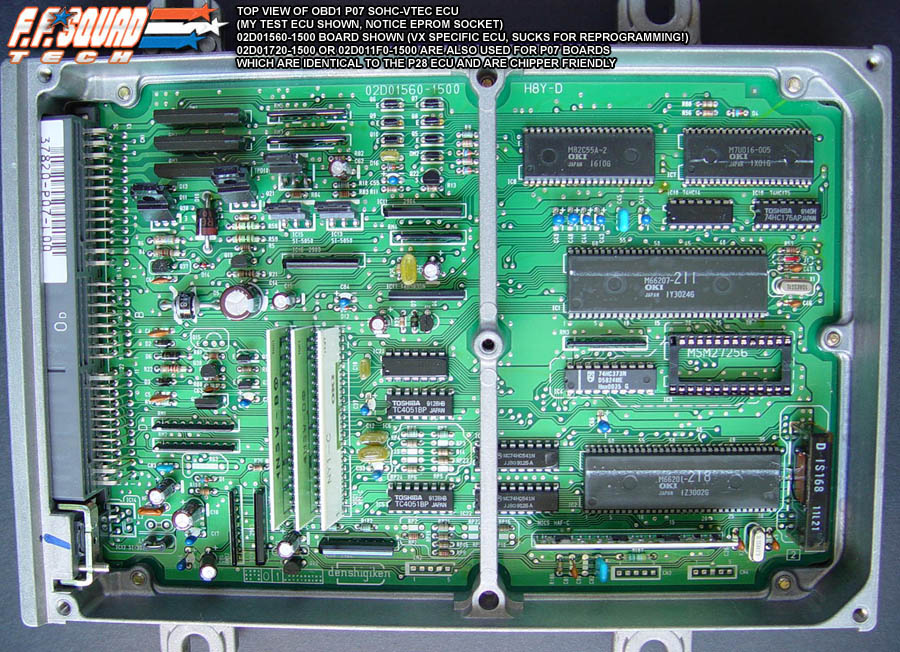

The P07 is a unique OBD1 ECU equipped in the 1992â1995 Civic VX (D15Z1 engine). It is distinguished by its dual-processor architecture, designed to manage the Civic VX's lean-burn combustion system.
Technical Overview
- Dual-Processor Architecture: Features two
66207processors, one of which is dedicated to managing the specialized wideband-like lean-burn O2 sensor system.
Technical Data
RAM Map
| Location | Bytes | Description | Notes |
|---|---|---|---|
| 00CC | 1 | Vehicle Speed | (km/h) |
| 00D9 | 1 | ECT Sensor | 0Vâ5V (0x00â0xFF) |
ROM Map
| Location | Bytes | Description | Notes |
|---|---|---|---|
| 1292 | 1 | VTEC Coolant Temp Check | 0xD8 enables, 0xFF disables |
| 1997 | 1 | Speed Limiter | B7 = 183 km/h (114mph); FE = 254 km/h (158mph) |
| 1998 | 2 | Speed Limiter Routine | Bypass via NOP instructions (00 00) |
| 2BA3 | 2 | Checksum Jump | Change JEQ to SJ to disable |
Note: The P07 ECU architecture is significantly different from standard VTEC ECUs. ROM modifications require specific care to maintain the integrity of the lean-burn control algorithms.
