5050s
Library.5050s · r1.1 · · b16a2
Use this method if you install a 5050s in IC14 and you get a MIL code 21.
STEP 1 modify and install the VTEC parts as normal but stop at the installation of IC14
STEP 2 install the 5050s in the IC14 position and do not solder pin 4 of the 5050s

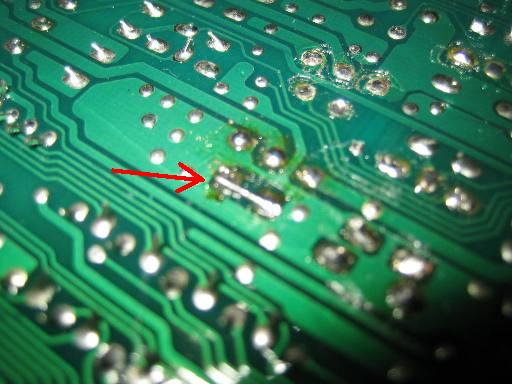

STEP 3 on the PCB of the ECU bridge pads 2 and 4 ( do not bridge the legs of the 5050s )

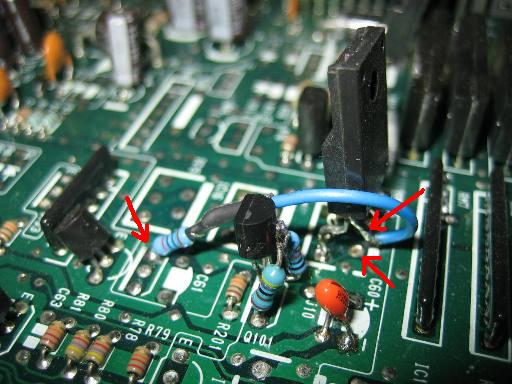

STEP 4 get a 820R resistor and solder 4cm of wire to one side and solder the other end of the resistor to the emitter of Q102 ( as a 5v ref )
STEP 5 solder the other side of the wire to pin 4 of the 5050s, you might want to trim back the leg a bit so it doesnt stick out to much.
and thats it, enjoy your VTEC
I tested a ECU with this method on the Engine Simulator in VTEC for over 5 minuits continuously and it did not mis a beat and nothing got to hot.
link to thread http://forum.pgmfi.org/viewtopic.php?t=12672
cheers
John
b16A2
STEP 3 on the PCB of the ECU bridge pads 2 and 4 ( do not bridge the legs of the 5050s )
STEP 4 get a 820R resistor and solder 4cm of wire to one side and solder the other end of the resistor to the emitter of Q102 ( as a 5v ref )
STEP 5 solder the other side of the wire to pin 4 of the 5050s, you might want to trim back the leg a bit so it doesnt stick out to much.
and thats it, enjoy your VTEC
I tested a ECU with this method on the Engine Simulator in VTEC for over 5 minuits continuously and it did not mis a beat and nothing got to hot.
link to thread http://forum.pgmfi.org/viewtopic.php?t=12672
cheers
John
b16A2
| Attachment: | Modify: | Size: | Date: | Who: | Comment: |
|---|---|---|---|---|---|
| | mod | 37420 | 27 Jan 2007 - 14:30 | b16a2 | link pin 2 and 4 |
| | mod | 46044 | 27 Jan 2007 - 14:31 | b16a2 | final layout |
| | mod | 2848 | 27 Jan 2007 - 14:32 | b16a2 | 5050s layout |
