this is for board pn: 02d01550-1500 Auto to Manual: remove rp17 remove rp18 add a jumper to rp18 Manual to Auto:

• remove jumper at RP18 (Not sure what will be here)

• add 4.7kOhm +/- 5% at RP18 SMD

• add 2.7kOhm +/- 5% at RP17 SMD

• add IC15 & IC16 5050 S or equiv.

• add Caps at C73, c74, c75, c76 (values??? 0.1 uf ? should be ceramic)

• add Diodes to D13 and D12 (1A Surface mount will work)

• add q29 q28

• add c57

• Not sure about any transistors yet... If someone has a Manual P08 and can take a high quality picture of the top and bottom, Please email them to me.. CRXSi RVtec (mailto:[email protected])

Attachment:	Modify:	Size:	Date:	Who:	Comment:

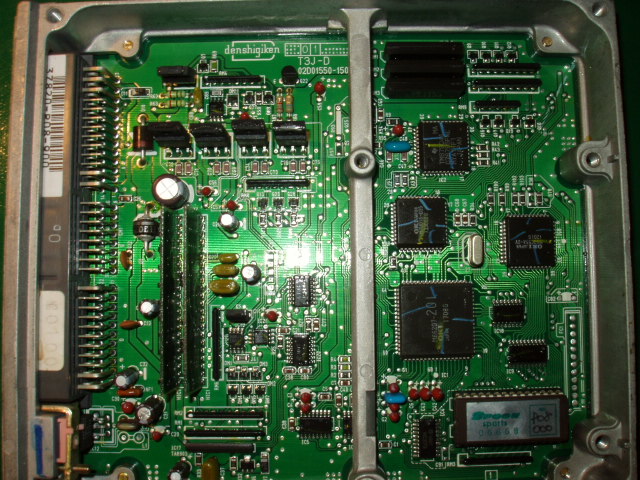

PC030021.JPG	mod	143950	30 Mar 2004 - 02:14	eg6ajk	JDM P08 ECUs (auto)
