PM5 8891 Civic base model/CRX DX (DPFI D15b) There were two distinct styles of this ECU. One features an 83C154 MCU, one features a 66201 MCU.
Adapted from pgmfi.org wiki
PM5 88-91 Civic base model/CRX DX (DPFI D15b) There were two distinct styles of this ECU. One features an 83C154 MCU, one features a 66201 MCU. Presumably 88-89 vs 90-91 ?
- PM5 dx ECU, "old"
83C154style, thanks TJ:
| Attachment: | Modify: | Size: | Date: | Who: | Comment: |
|---|---|---|---|---|---|

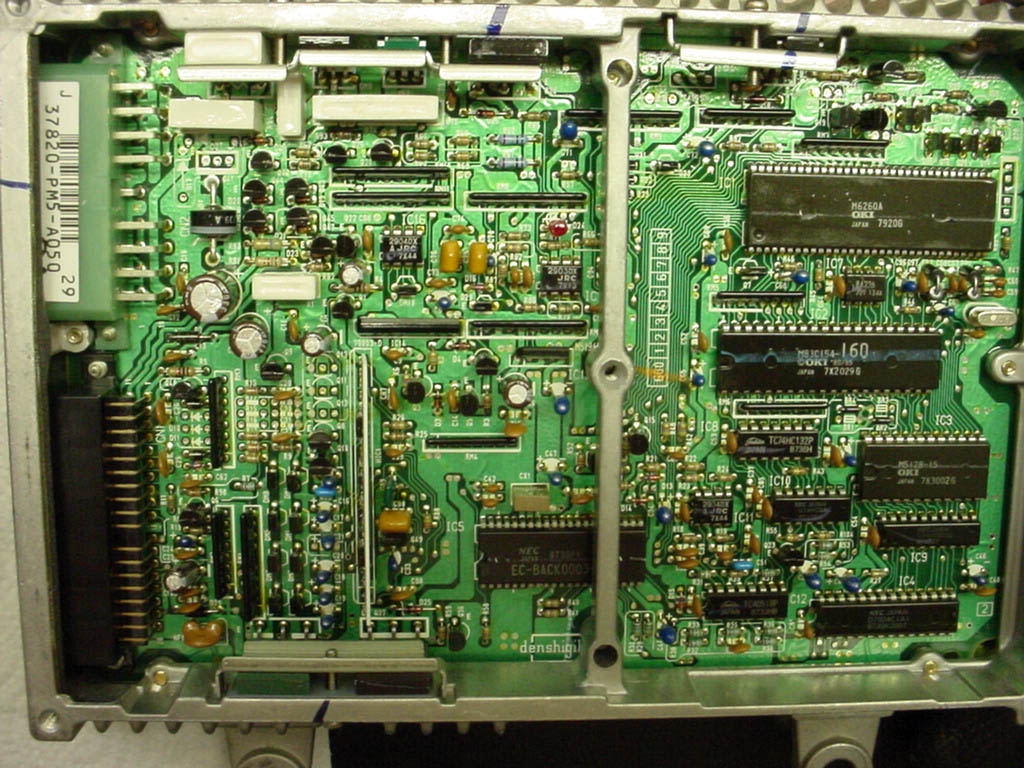

 PM5dxTJ.jpg |
mod | 207404 | 22 Jul 2004 - 16:33 | blundar | PM5 dx ECU, thanks TJ |
| PM5-230.jpg |

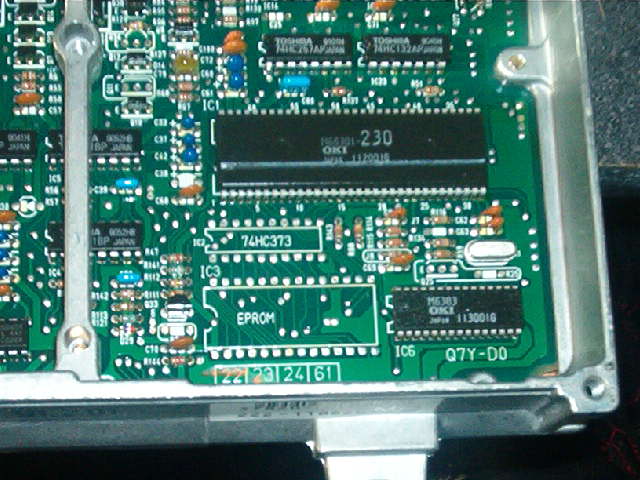

mod | 70958 | 22 Jul 2004 - 16:34 | blundar | closeup of ROM area on 90-91 PM5 |
| pm5-230\_rom.gif |

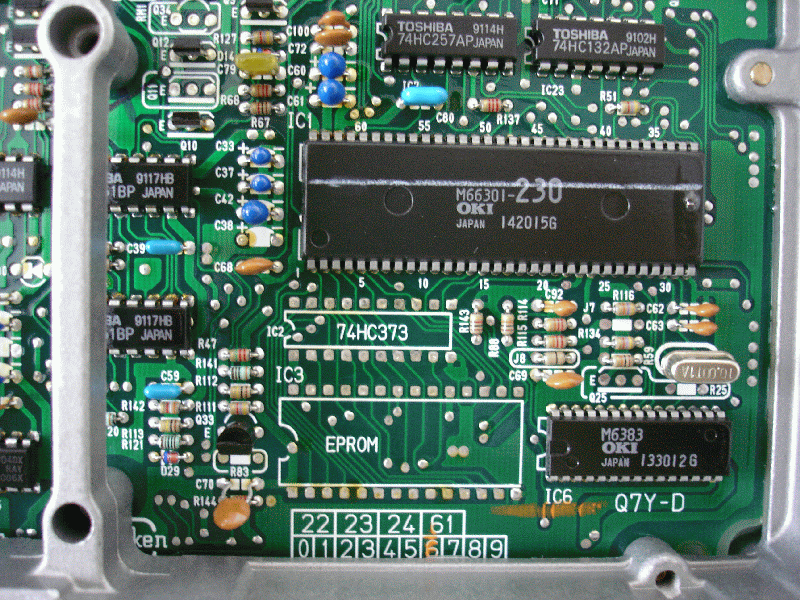

mod | 343664 | 20 Mar 2005 - 18:32 | 1net | one more 90-91 PM5 ( chips readable) |
| DSC00474.JPG |

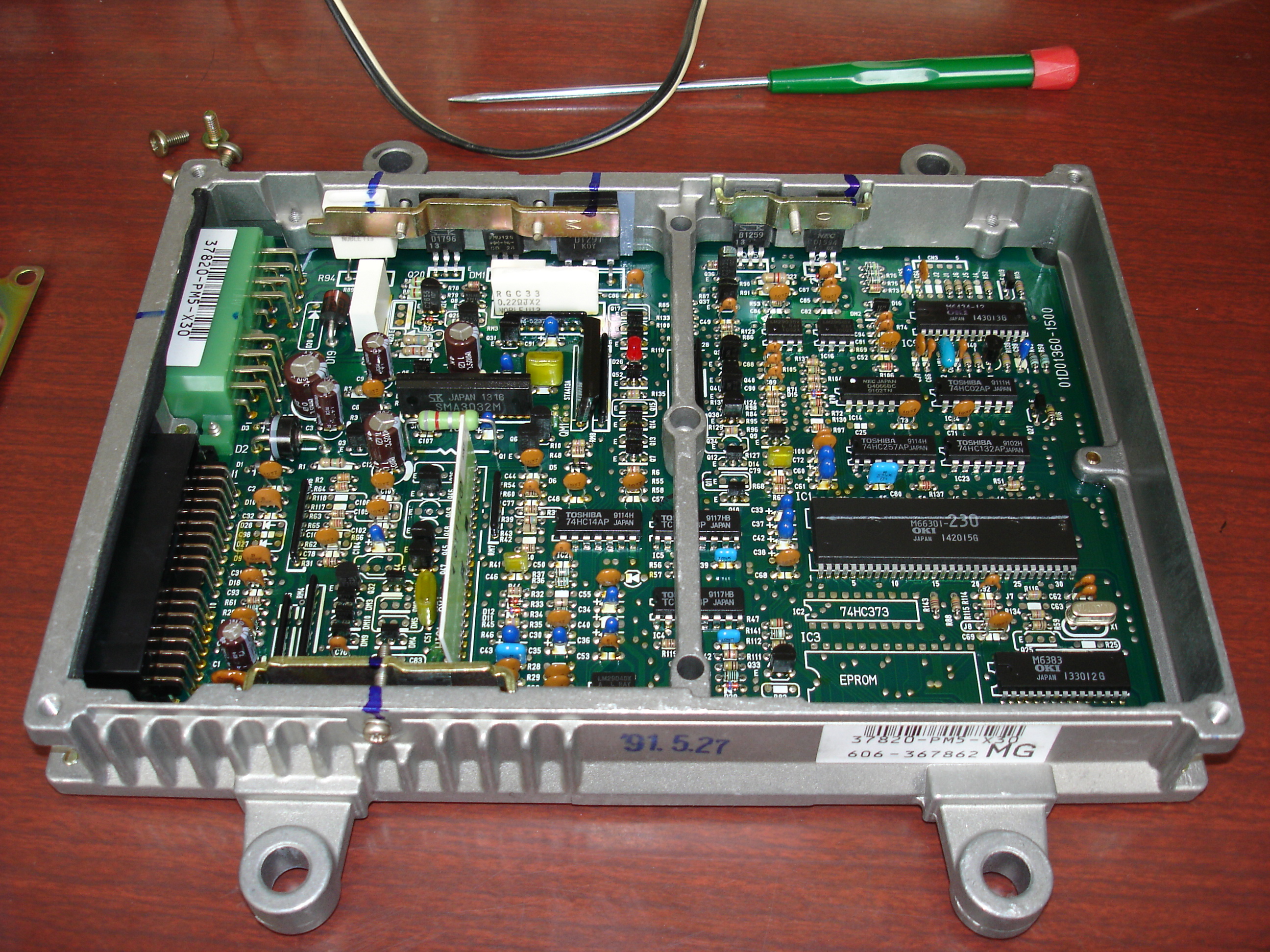

mod | 2382041 | 08 Jul 2005 - 14:52 | 1net | 90-91 PM5 (image is great for comparing P04 & PM5) |
Credits and source
Authors blundar, 1net
Source Adapted from PM5 on pgmfi.org wiki. Licensed under CC BY-NC-SA 1.0.
