ECU 0-5V Wideband O2 Input Modification
Modify your Honda ECU to accept a 0-5V wideband O2 sensor input by bypassing the internal Op-Amp voltage limiting circuit.

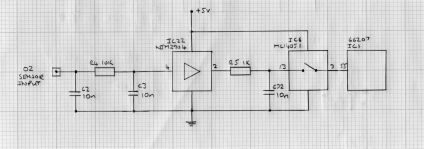

The standard Honda ECU O2 sensor input circuit is designed for narrowband sensors, which typically operate within a 0-1V range. Internally, the ECU's Analog-to-Digital Converter (ADC) is configured to read 0-5V, but the O2 input signal path includes an Op-Amp stage that limits the maximum voltage seen by the ADC to approximately 3.8V.

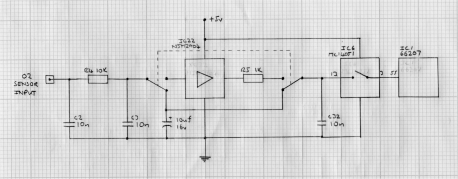

To utilize a 0-5V wideband O2 signal, the Op-Amp stage must be bypassed to allow the full voltage range to reach the multiplexer (Mux).
Modification Procedure
The modification involves bypassing the Op-Amp stage by lifting a specific resistor and creating a jumper connection to route the signal directly to the Mux.
Caution
This modification involves delicate PCB work. Ensure you have proper soldering equipment and experience with surface-mount components to avoid damaging the ECU board.
Visual Reference
Implementation Steps

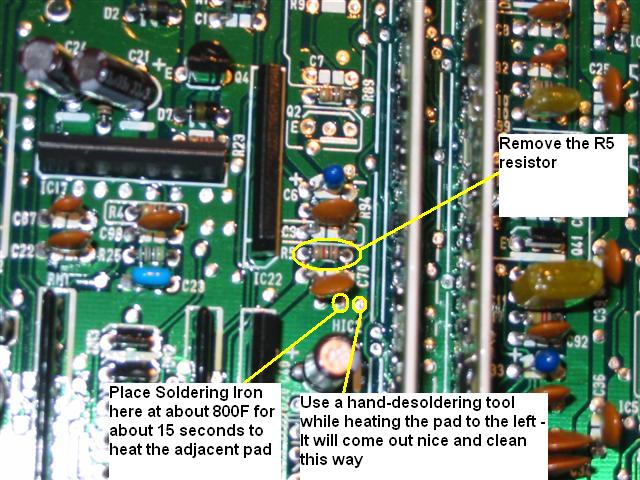

- Locate the Op-Amp stage: Identify the resistor responsible for the voltage limiting on the O2 input path.
- Bypass the circuit: Lift the resistor leg to disconnect the Op-Amp from the signal path.

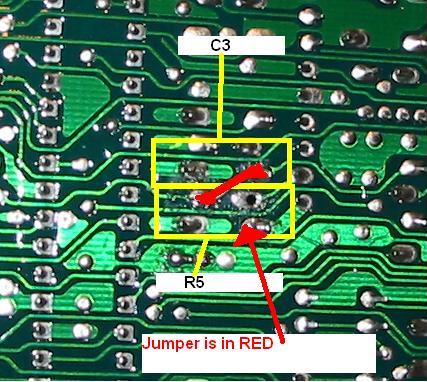

- Install jumper: Use the capacitor lead or a suitable jumper wire to bridge the connection, routing the O2 input directly to the Mux.
Verification
Once the modification is complete, apply a 5V signal to the O2 input pin. Use your tuning software to monitor the O2 voltage reading. The ECU should now register the full 0-5V range, confirming the Op-Amp has been successfully bypassed.
