02D01980-1500

Editor's note: the small list does not appear to have the required parts for the IABs

Author: eg6ajk Date: 05-24-03 15:10

my parts list seems to be alot smaller:

changes to the ECU on top of standard external ROM changes by adding:

• C60: 1uf 35V tantlum
• D11: 600V 1AM diode
• IC14: SK5151S
• J10: 0hm resistor/jumper
• R142: 10k ohm resistor
• R143: 45k ohm resistor (51k ohm is the recommended resistor)
• R144: 12k ohm resistor (Can use 10k here)
• Q26: C2785/C2458Y tranistor
• Q37: C2785/C2458Y tranistor

Removed:

• RP17: 0hm resistor
• J4: 0hm resistor

EG come, EG go!

and the original list...

Author: Darksmiles

Date: 09-05-03 12:13

Hey Flyrod- I just saw your post about the P75-P72 Use the USDM GSR P72 w/ knock disabled ROM .

Here is my final list for the conversion:

Add:

• Q34 - D1780
• D11 - Clamping Diode
• IC14 - 515 X High Side Switch
• J10 - Jumper
• R142 - 10k resistor
• R143 - 51k resistor
• R144- 12k resistor (Can use 10k here)
• Q17 - A143
• Q26 - C2785
• R107 - 220 ohm resistor
• C94 - 4.7uF tantalum electrolytic capacitor
• R115 - 220 ohm resistor
• R116 - 220 ohm resistor
• J5 - jumper
• J3 - jumper
• J1 - Jumper

Remove:

• R90
• C71
• J4

That's it...runs great!

Andrew

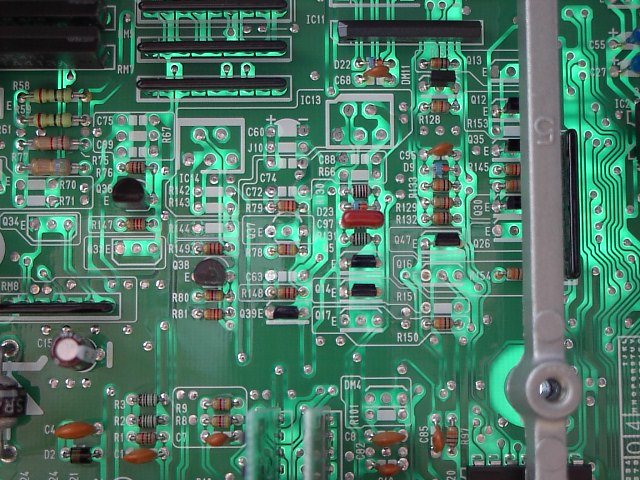

• Picture009.jpg:


Attachment:	Modify:	Size:	Date:	Who:	Comment:
p75conversion.jpg	mod	167595	30 Mar 2004 - 02:33	eg6ajk
