Compare ECU connector wiring and pinout schematics across Honda OBD0, OBD1, OBD2A, and OBD2B systems.

Atualizado a 20 de junho de 2026 Intermédio 2

tungsten2k Author

blundar Author

Ace0246 Author

A wire harness is the assembly of connectors and wires connected to an ECU0. The OBD00, OBD10, and OBD20 systems utilize different connectors and wiring schematics.

ECU Connector Pinouts

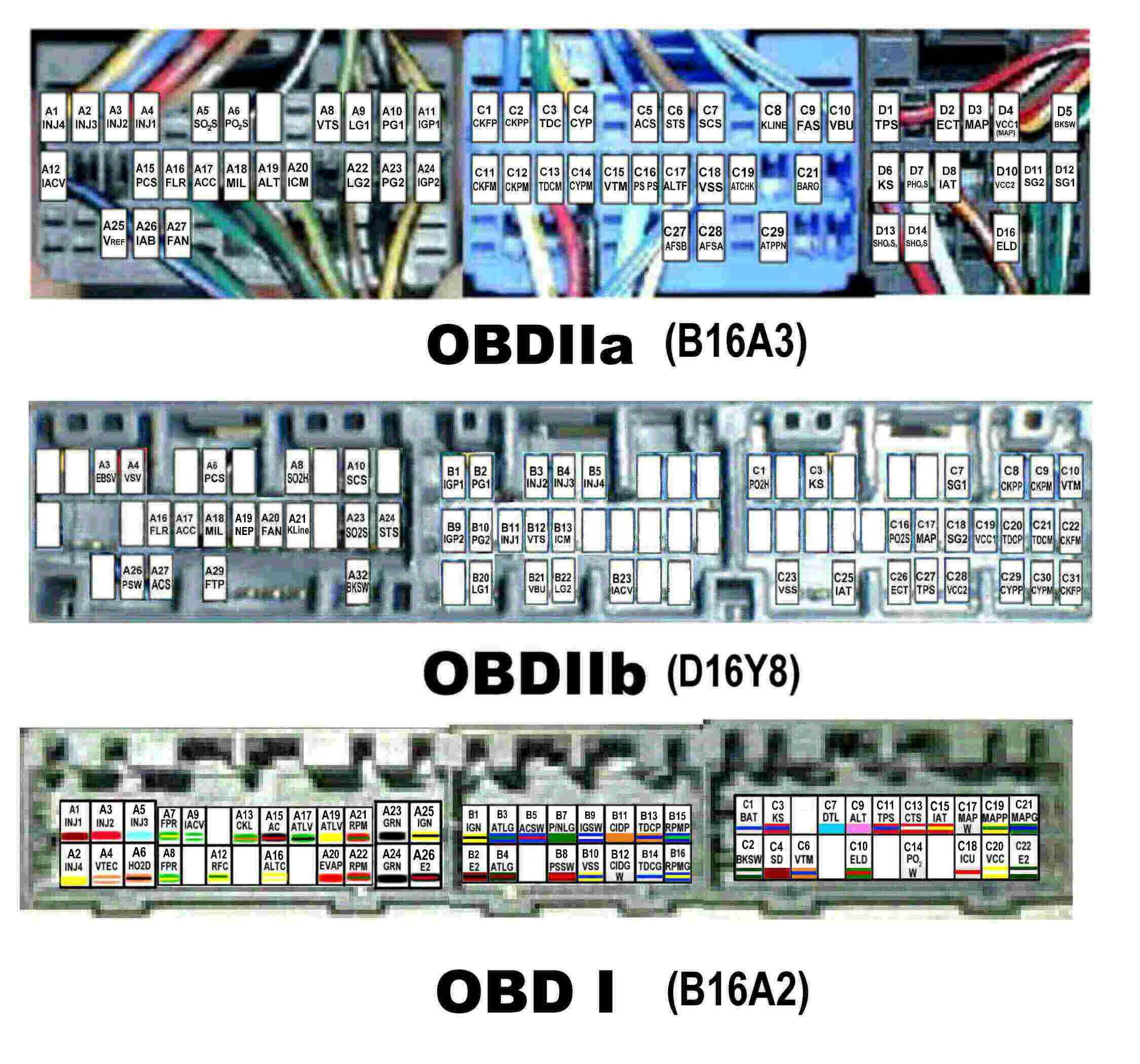

The following image compares the pinouts of OBD1, OBD2A, and OBD2B ECU connectors:

ECU connector pinouts for OBD1, OBD2A, and OBD2B

Warning

Factory manual references for OBD1 Integra ECU connectors that may be associated with the P72 ECU0 are currently unavailable.
