Editor's note: the small list does not appear to have the required parts for the IABsAuthor: eg6ajk Date: 05-24-03 15:10 my parts list seems to be alot smaller: changes to the ECU on top of standard external ROM changes by adding: - C60: 1uf 35V tantlum

• D11: 600V 1AM diode
• IC14: SK5151S
• J10: 0hm resistor/jumper
• R142: 10k ohm resistor
• R143: 45k ohm resistor (51k ohm is the recommended resistor)
• R144: 12k ohm resistor (Can use 10k here)
• Q26: C2785/C2458Y tranistor
• Q37: C2785/C2458Y tranistor

Removed: - RP17: 0hm resistor

• J4: 0hm resistor

EG come, EG go! ***and the original list...***Author: Darksmiles Date: 09-05-03 12:13 Hey Flyrod- I just saw your post about the P75-P72 Use the USDM GSR P72 w/ knock disabled ROM . Here is my final list for the conversion: Add:- Q34 - D1780

• D11 - Clamping Diode
• IC14 - 515 X High Side Switch
• J10 - Jumper
• R142 - 10k resistor
• R143 - 51k resistor
• R144- 12k resistor (Can use 10k here)
• Q17 - A143
• Q26 - C2785
• R107 - 220 ohm resistor
• C94 - 4.7uF tantalum electrolytic capacitor
• R115 - 220 ohm resistor
• R116 - 220 ohm resistor
• J5 - jumper
• J3 - jumper
• J1 - Jumper

Remove:- R90

• C71
• J4

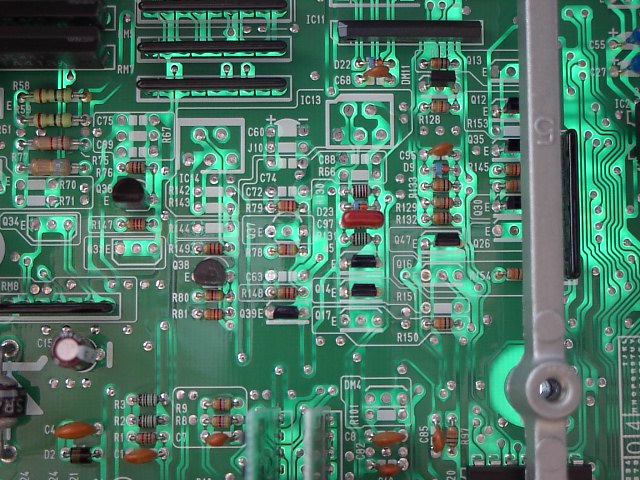

That's it...runs great! Andrew - Picture009.jpg:

Attachment:	Modify:	Size:	Date:	Who:	Comment:

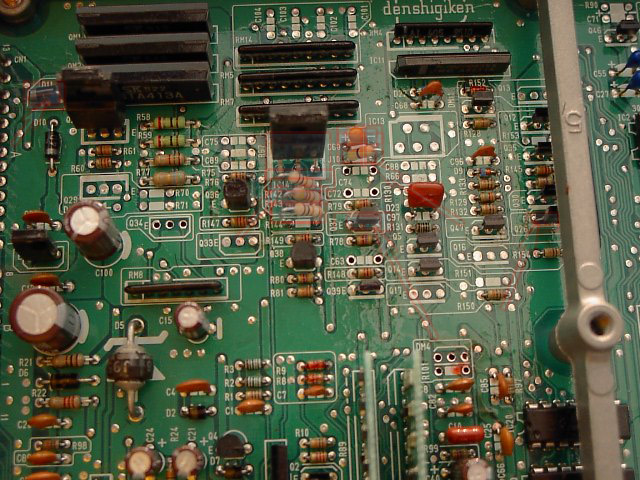

p75conversion.jpg	mod	167595	30 Mar 2004 - 02:33	eg6ajk
